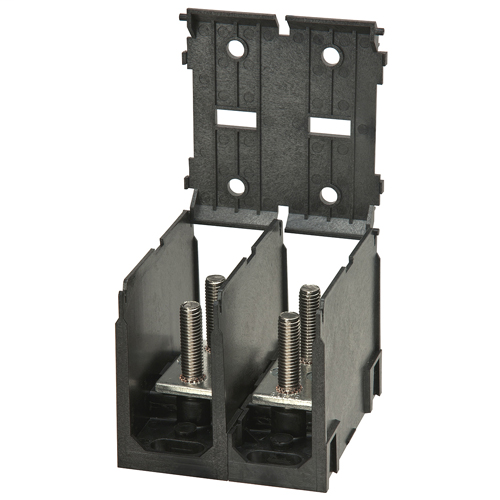

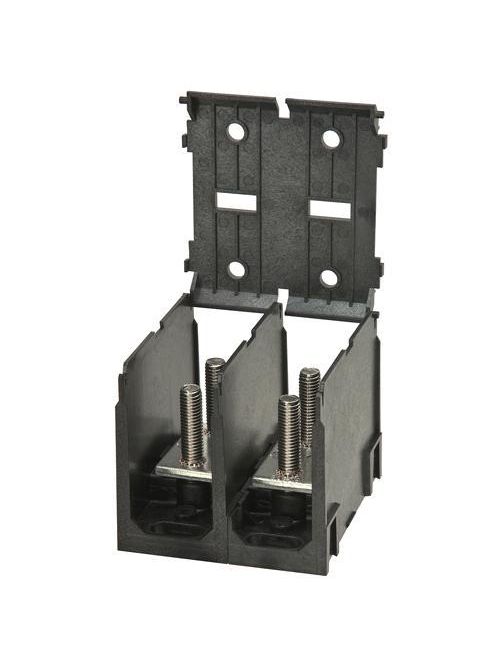

ILSCO PDS-11-CC-3 ALM(P)(1)1/4-20(S
$54.76/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PDS-11-CC-3
North Coast Part # 1165176

Specifications

  • UPC Code: 78366971711
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Bolt/Stud Size Main: 1/4-20 x 9/16
  • Bolt/Stud Size Tap: 1/4-20 x 9/16
  • Number of Wire Binding Screws per Port: 1
  • Length (IN): 0
  • Width (IN): 0
  • Height (IN): 0
  • Weight (LB): 0.527
  • Mounting Bolt/Stud Size (mm): 254
  • Material: Copper
  • Bolt/Stud Material Main: Brass
  • Bolt/Stud Material Tap: Brass
  • Bolt/Stud Finish Main: Tin
  • Bolt/Stud Finish Tap: Tin
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Enclosure Material: Thermoplastic
  • Color: Black
  • Temperature Rating: 75°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E84782
  • UL / CULUS Specification: UL 1059 Recognized
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • ROHS Indicator: 3
  • RUS Listed: FALSE
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Contains DE-OX: FALSE
  • Mounting Method: DIN Rail,Panel
  • Mounting Hole Type: Thru
  • Number of Conductors: 2
  • Number of Poles: 3
  • Number of Ports Per Pole Primary: 1
  • Number of Ports Per Pole Secondary: 1
  • Connector Amperage Rating CU (Derated where applicable): 200 Amps
  • Bag Quantity: 1

Overview

UPC 78366971711
GTiN 00783669717112
Color Black
Type PDS:PWR DIST BLK STUD
Material Copper
Applications Power Distribution Block
Family Brand Name ILSCO
Number of Poles 3 Pole
Sub Brand ILSCO
Finish Tin Plated
Number of Conductors 2
Temperature Rating 75 C
TC Connection Mechanical
Enclosure Thermoplastic
Voltage null
