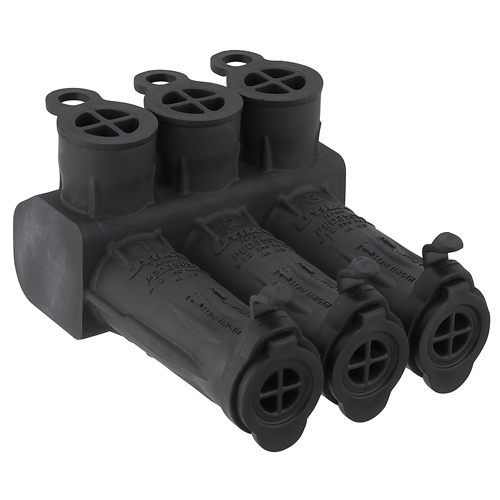

ILSCO PED3-350SS-DB 600 Volt 3.555 x 4.447 x 2.435 Inch Clear Plated Aluminum Alloy 3-Port Underground Tap Connector
$89.04/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PED3-350SS-DB
North Coast Part # 216270

Specifications

  • UPC Code: 78366971222
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 350 kcmil - 12 Str
  • Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 12 Sol
  • Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 350 kcmil - 12 Str
  • Conductor Range AL Solid (Primary, run, main, line): 10 Sol - 12 Sol
  • Conductor Size AL (Primary, run, main, line): 10 Sol,12 Sol,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str
  • Drive Size Main: 16-May
  • Drive Type Main: Internal Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 8-May
  • Length (IN): 4.424
  • Length (mm): 112.3696
  • Width (IN): 3.555
  • Width (mm): 90.297
  • Height (IN): 2.459
  • Height (mm): 62.4586
  • Weight (LB): 0.612209488
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: TPE (thermoplastic elastomer)
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Black
  • Direct Burial: TRUE
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • ANSI Specification: ANSI C119.1,ANSI C119.6
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 198.2
  • UL Control Number: 88X4
  • UL File Number: E125087
  • UL / CULUS Specification: UL 486D Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Contains DE-OX: TRUE
  • Number of Conductors: 3
  • Number of Poles: 1
  • Number of Ports / Wireways: 3
  • Number of Ports Main: 3
  • Replacement Parts: R2314C00A - PLUG FOR ROCKET SEAL, R2315C00A - SCREW PORT PLUG
  • Bag Quantity: 1

Overview

UPC 78366971222
GTiN 00783669712223
Type PDSS:MULTI TAP UNDERGRD
Applications Multi-Tap Connector for Direct Burial
Temperature Rating 90 C
Family Brand Name ILSCO
Sub Brand ILSCO
Finish Tin Plated
Color Black
Material Aluminum
Number of Conductors 3
TC Connection Mechanical
Voltage null
