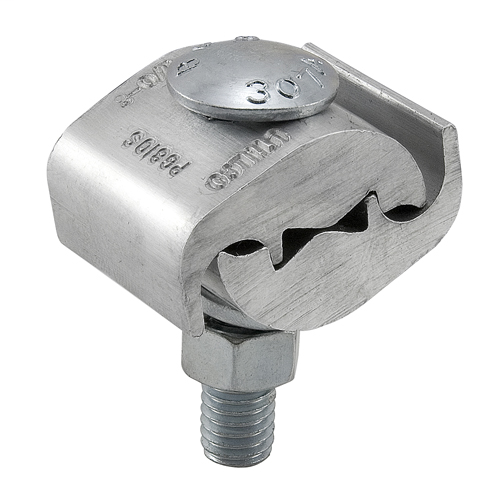

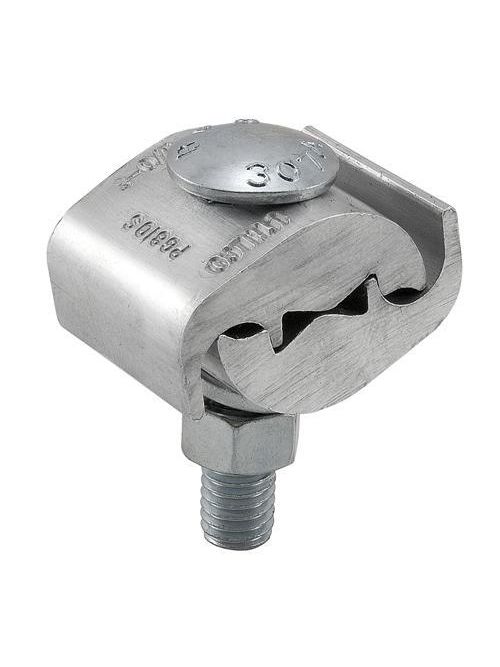

ILSCO PG810-S-Z AL MEC 8 SOL 1/0-6/
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PG810-S-Z
North Coast Part # 818066


  • UPC Code: 78366973012
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str - 8 Str
  • Conductor Range CU Solid (Primary, run, main, line): 1/0 Sol - 8 Sol
  • Conductor Size CU (Primary, run, main, line): 1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 1/0 Str - 8 Str
  • Conductor Range AL Solid (Primary, run, main, line): 1/0 Sol - 8 Sol
  • Conductor Size AL (Primary, run, main, line): 1/0 Sol,1 Sol,2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol
  • Clamping Bolt Size: 3/8/2020
  • Drive Size Main: 16-Sep
  • Drive Type Main: Carriage
  • Number of Wire Binding Screws per Port: 1
  • Length (IN): 1.125
  • Length (mm): 28.575
  • Width (IN): 1.674
  • Width (mm): 42.5196
  • Height (IN): 2.208
  • Height (mm): 56.0832
  • Weight (LB): 0.214
  • Material: Aluminum
  • Clamping Hardware Material: Steel
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Clear
  • Color: Silver
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Contains DE-OX: TRUE
  • Number of Conductors: 2
  • Number of Poles: 1
  • Wire Orientation: Parallel
  • Bag Quantity: 1


UPC 78366973012
Item Long Description ILSCO Parallel Groove Clamp, Mechanical connection, Dual Rated, Aluminum material, Clear plated connector,Copper/Aluminum Primary Conductor 1/0 Str - 8 Str and 1/0 Sol - 8 Sol, 2 conductors, Drive Type Main 9/16 Carriage, primary color Silver, 1 poles,
GTiN 00783669730128
Applications Parallel Groove Clamp
Family Brand Name ILSCO
Sub Brand ILSCO
Finish Clear
Color Silver
Material Aluminum
Number of Conductors 2
TC Connection Mechanical
