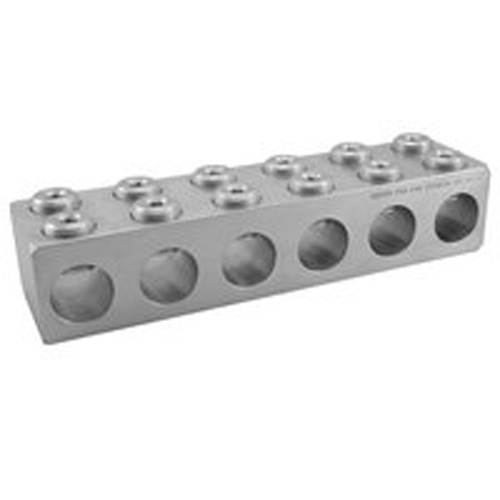

ILSCO PSA-4-750-Z AL MEC 750-2 T 4
$171.10/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PSA-4-750-Z
North Coast Part # 335294

Specifications

  • UPC Code: 78366969930
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 750 kcmil - 2 Str
  • Conductor Size CU (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 750 kcmil - 1/0 Str
  • Conductor Size AL (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
  • Drive Size Main: 8-Mar
  • Drive Type Main: Internal Hex
  • Number of Wire Binding Screws per Port: 2
  • Wire Binding Screw Size: 15/16
  • Length (IN): 6.562
  • Length (mm): 166.6748
  • Width (IN): 2.5
  • Width (mm): 63.5
  • Height (IN): 2
  • Height (mm): 50.8
  • Weight (LB): 2.439150671
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Silver
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Number of Conductors: 4
  • Number of Poles: 1
  • Number of Ports / Wireways: 4
  • Number of Ports Main: 4
  • Replacement Parts: PSC-4-750
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Categories

Overview

UPC 78366969930
GTiN 00783669699302
Type PED:MULTI TAP BARS AL/CU
Applications Multi-Tap Connector
Family Brand Name ILSCO
Sub Brand ILSCO
Finish Tin Plated
Color Silver
Material Aluminum
Number of Conductors 4
TC Connection Mechanical
