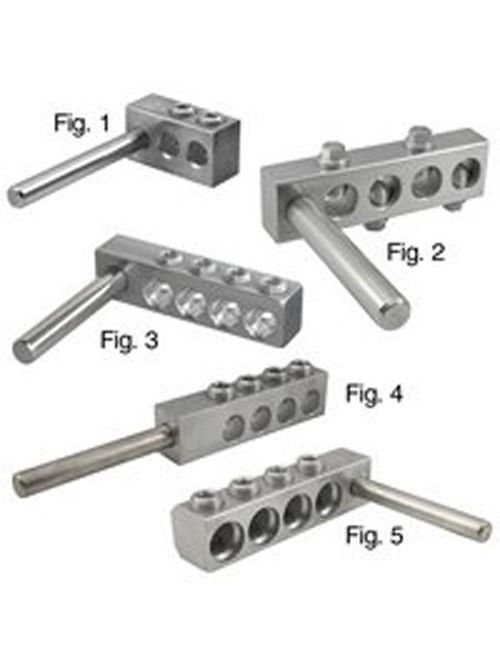

ILSCO PTT-2R-0-Z AL MEC 1/0-14 W PO

Specifications

• UPC Code: 78366975000
• UNSPSC Code: 39121408
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str - 14 Str
• Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• Conductor Range AL Stranded (Primary, run, main, line): 1/0 Str - 14 Str
• Conductor Range AL Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Conductor Size AL (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• Drive Size Main: 16-Mar
• Drive Type Main: Internal Hex
• Mounting Bolt/Stud Size: 3/8/2020
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 16-Jul
• Length (IN): 1.875
• Length (mm): 47.625
• Width (IN): 0.75
• Width (mm): 19.05
• Height (IN): 1
• Height (mm): 25.4
• Weight (LB): 0.399
• Mounting Bolt/Stud Length (mm): 76.2
• Mounting Bolt/Stud Size (mm): 965.2
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Wire Binding Hardware Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Color: Silver
• ANSI Specification: ANSI C119.6
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Connection: Mechanical
• Conductor Type: Solid,Stranded
• Number of Conductors: 2
• Number of Poles: 1
• Number of Ports / Wireways: 2
• Number of Ports Main: 2
• Bag Quantity: 1
• CrossSell: DE-OX-8OZ
