ILSCO RLT-4 CU CMP 2-2/0 3/4 ROD UL

$73.96/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

UPC Code: 78366971568
UNSPSC Code: 39121448
Dual Rated: FALSE
Conductor Range CU Stranded (Primary, run, main, line): 2/0 Str - 2 Str
Conductor Size CU (Primary, run, main, line): 2/0 Str,1/0 Str,1 Str,2 Str
Conductor Range CU Stranded (Secondary, tap, load): 2/0 Str - 2 Str
Conductor Size CU (Secondary, tap, load): 2/0 Str,1/0 Str,1 Str,2 Str
Rebar Size(s) Main: #3 (3/8),#4 (1/2)
Ground Rod Size: 4-Mar
Length (IN): 1.344
Length (mm): 34.1376
Width (IN): 0.875
Width (mm): 22.225
Height (IN): 2.191
Height (mm): 55.6514
Weight (LB): 0.46
Material: Copper
Conductor Material: Copper
Connector Finish: Bare
Color: Copper
Direct Burial: TRUE
CSA File Number: LR-5465
CSA Standard: C22.2 No. 41
UL Control Number: 667P
UL File Number: E34440
UL / CULUS Specification: UL 467 Listed
Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Barrel Marking: Hard
Conductor Type: Stranded
ILSCOs Die Catalog Number: ILD-998
ILSCOs Die Index Number: 9981011
Number of Mounting Holes: 0
Bag Quantity: 1
CrossSell: ILD-998, DE-OX-C-8OZ, TB-12U1000-P

UPC	78366971568

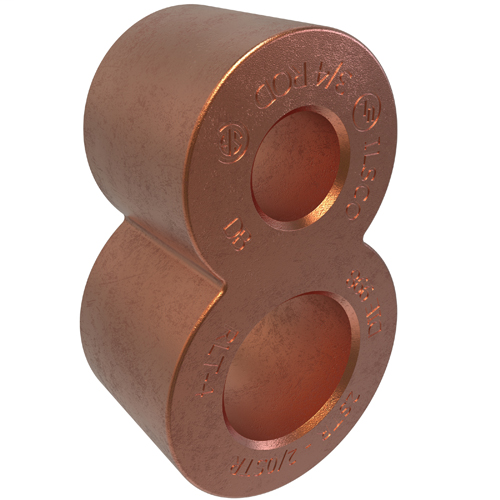

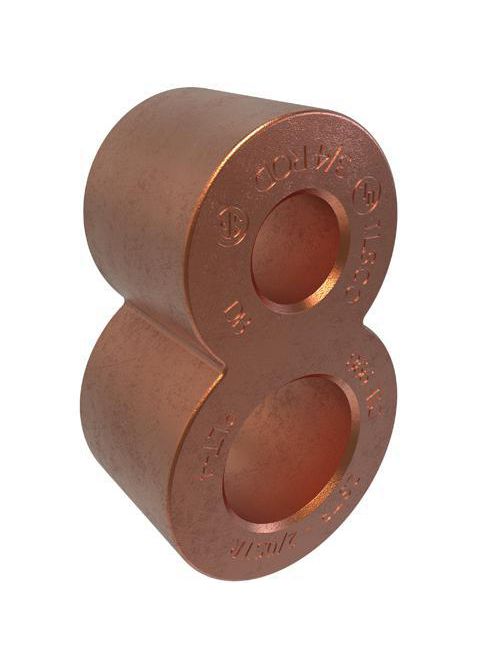

Item Long Description	Permaground Grounding Connector, Copper material, Bare plated connector, UL 467 Listed, C22.2 No. 41, Copper Primary Conductor 2/0 Str - 2 Str, Copper Secondary Conductor 2/0 Str - 2 Str, 3/4 nominal ground rod, primary color Copper, die index 998, 1011,
GTiN	00783669715682
Finish	No Finish
Type	RLT:CU GRD ROD CONNECTOR
Material	Copper
Pkg Qty	20
Family Brand Name	ILSCO
Sub Brand	ClearChoice
Size	L:1.344;W:0.875;H:2.191 IN
Color	Copper
Conductor Size	2/0-2 AWG
Applications	Grounding Connector
Temperature Rating	NA C
Conductor Type	Copper
