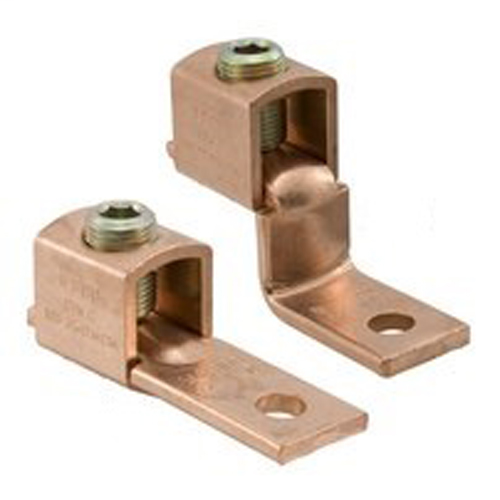

ILSCO SLS-225 2 to 4/0 AWG 5/16 Inch Stud Copper 1-Conductor 1-Hole V-Bottom Collar Mechanical Lug

Specifications

• UPC Code: 78366982399
• UNSPSC Code: 39121408
• Dual Rated: FALSE
• Conductor Range CU Stranded (Primary, run, main, line): 4/0 Str - 2 Str
• Conductor Size CU (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
• Drive Size Main: Jul-32
• Drive Type Main: Internal Hex
• Mounting Bolt/Stud Size: 5/16/2020
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 8-May
• Wire Binding Torque: 150
• Length (IN): 2.375
• Length (mm): 60.325
• Width (IN): 1
• Width (mm): 25.4
• Height (IN): 1.223
• Height (mm): 31.0642
• Weight (LB): 0.211
• Dimension G (IN): 0.5
• Dimension G (mm): 12.7
• Mounting Hole Diameter (IN): 0.344
• Mounting Hole Diameter (mm): 8.7376
• Tang Length (IN): 1.219
• Tang Length (mm): 30.9626
• Tang Thickness (IN): 0.125
• Tang Thickness (mm): 3.175
• Tang Width (IN): 1
• Tang Width (mm): 25.4
• Material: Copper
• Conductor Material: Copper
• Wire Binding Hardware Material: Steel
• Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
• Color: Copper
• Direct Burial: FALSE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Collar Style: V-Bottom
• Connection: Mechanical
• Conductor Type: Stranded
• Mounting Hole Type: Thru
• Number of Conductors: 1
• Number of Mounting Holes: 1
• Number of Poles: 1
• Number of Ports / Wireways: 1
• Number of Ports Main: 1
• Bag Quantity: 1
• CrossSell: DE-OX-8OZ
