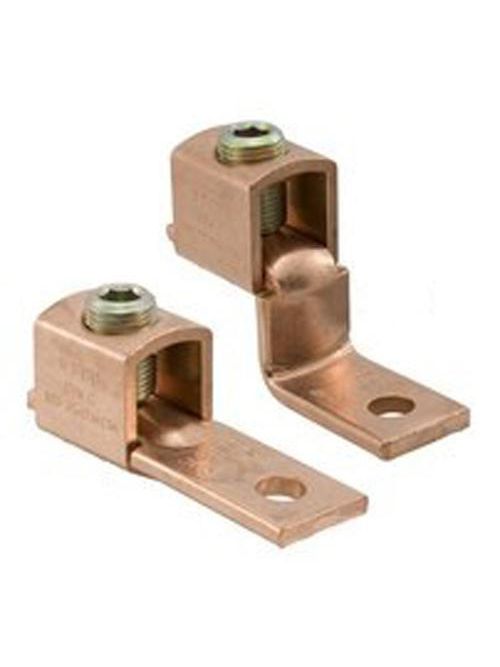

ILSCO SLS-400 1/0 AWG to 500 MCM 3/8 Inch Stud Copper 1-Conductor 1-Hole V-Bottom Collar Mechanical Lug
$53.27/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # SLS-400
North Coast Part # 597540

Specifications

  • UPC Code: 78366982508
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 500 kcmil - 1/0 Str
  • Conductor Size CU (Primary, run, main, line): 500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
  • Drive Size Main: 16-May
  • Drive Type Main: Internal Hex
  • Mounting Bolt/Stud Size: 3/8/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 4-Mar
  • Wire Binding Torque: 275
  • Length (IN): 3.875
  • Length (mm): 98.425
  • Width (IN): 1.5
  • Width (mm): 38.1
  • Height (IN): 1.635
  • Height (mm): 41.529
  • Weight (LB): 0.802
  • Dimension G (IN): 0.938
  • Dimension G (mm): 23.8252
  • Mounting Bolt/Stud Size (mm): 965.2
  • Mounting Hole Diameter (IN): 0.406
  • Mounting Hole Diameter (mm): 10.3124
  • Tang Length (IN): 2.171
  • Tang Length (mm): 55.1434
  • Tang Thickness (IN): 0.188
  • Tang Thickness (mm): 4.7752
  • Tang Width (IN): 1.5
  • Tang Width (mm): 38.1
  • Material: Copper
  • Conductor Material: Copper
  • Wire Binding Hardware Material: Steel
  • Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
  • Color: Copper
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Collar Style: V-Bottom
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Mounting Hole Type: Thru
  • Number of Conductors: 1
  • Number of Mounting Holes: 1
  • Number of Poles: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366982508
GTiN 00783669825084
Length 3-7/8 in
Width 1-1/2 in
Voltage 2000 Volt
Type SLU:OFFSET LUG
Applications Mechanical Lug, One Conductor
Family Brand Name ILSCO
Sub Brand ILSCO
Finish NA
Color Copper
Material Copper
Number of Conductors 1
Temperature Rating 90 C
TC Connection Mechanical
