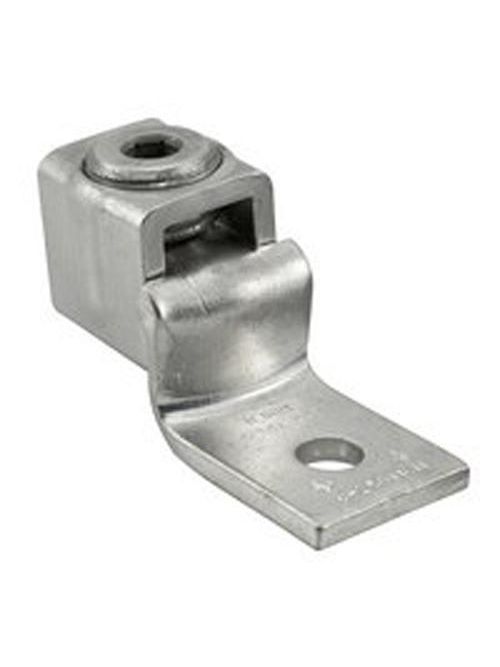

ILSCO SLUH-90 CU MEC 2-14 17/64 T U
$6.74/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # SLUH-90
North Coast Part # 668422

Specifications

  • UPC Code: 78366984095
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 2 Str - 14 Str
  • Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Flex Conductor Range: 3-8 H, 3-10 G,I,K,M,DLO
  • Flex Conductor Size (Class G): 3 G,4 G,6 G,8 G,10 G
  • Flex Conductor Size (Class H): 3 H,4 H,6 H,8 H
  • Flex Conductor Size (Class I): 3 I,4 I,6 I,8 I,10 I
  • Flex Conductor Size (Class K): 3 K,4 K,6 K,8 K,10 K
  • Flex Conductor Size (Class M): 3 M,4 M,6 M,8 M,10 M
  • Flex Conductor Size (Class DLO): 3 DLO,4 DLO,6 DLO,8 DLO,10 DLO
  • Drive Type Main: Slotted
  • Mounting Bolt/Stud Size: 1/4/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-Jul
  • Wire Binding Torque: 10 - 14 AWG = 35,8 AWG = 40,4 - 6 AWG = 45,2 AWG = 50
  • Length (IN): 1.508
  • Length (mm): 38.3032
  • Width (IN): 0.516
  • Height (IN): 0.929
  • Height (mm): 23.5966
  • Weight (LB): 0.056
  • Dimension G (IN): 0.25
  • Dimension G (mm): 6.35
  • Mounting Hole Diameter (IN): 0.266
  • Mounting Hole Diameter (mm): 6.7564
  • Tang Length (IN): 0.625
  • Tang Length (mm): 15.875
  • Tang Thickness (IN): 0.109
  • Tang Thickness (mm): 2.7686
  • Tang Offset (IN): 0.422
  • Tang Offset (mm): 10.7188
  • Tang Width (IN): 0.516
  • Tang Width (mm): 13.1064
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Brass
  • Wire Binding Hardware Finish: Tin
  • Color: Copper
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Collar Style: V-Bottom
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Mounting Hole Type: Thru
  • Number of Conductors: 1
  • Number of Mounting Holes: 1
  • Number of Poles: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366984095
GTiN 00783669840957
Length 1.484 in
Width 0.500 in
Voltage 2000 Volt
Type SLUH:HEAVY DUTY 1 HOLE
Applications Mechanical Heavy Duty Lug, One Conductor
Pkg Qty 100
Family Brand Name ILSCO
Sub Brand ILSCO
Finish Tin Plated
Color Copper
Material Copper
Number of Conductors 1
Temperature Rating 90 C
TC Connection Mechanical
