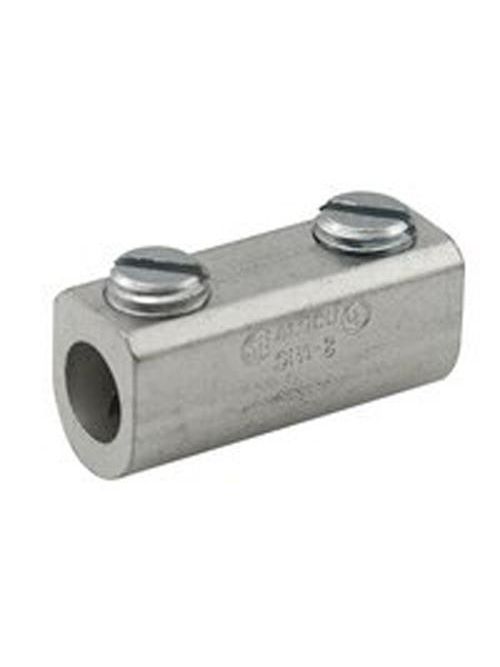

ILSCO SPA-1000 AL MEC SPLICER 1000-
Product image thumbnail 0
Product image thumbnail 1
$78.80/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # SPA-1000
North Coast Part # 427067

Specifications

  • UPC Code: 78366985712
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 1000 kcmil - 500 kcmil
  • Conductor Size CU (Primary, run, main, line): 1000 kcmil,950 kcmil,900 kcmil,850 kcmil,800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil
  • Conductor Range AL Stranded (Primary, run, main, line): 1000 kcmil - 500 kcmil
  • Conductor Size AL (Primary, run, main, line): 1000 kcmil,950 kcmil,900 kcmil,850 kcmil,800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil
  • Conductor Range CU Stranded (Secondary, tap, load): 1000 kcmil - 500 kcmil
  • Conductor Size CU (Secondary, tap, load): 1000 kcmil,950 kcmil,900 kcmil,850 kcmil,800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil
  • Conductor Range AL Stranded (Secondary, tap, load): 1000 kcmil - 500 kcmil
  • Conductor Size AL (Secondary, tap, load): 1000 kcmil,950 kcmil,900 kcmil,850 kcmil,800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil
  • Drive Size Main: 16-Sep
  • Drive Type Main: Internal Hex
  • Number of Wire Binding Screws per Port: 3
  • Wire Binding Screw Size: 1/1/2008
  • Wire Binding Screw Size (mm): 2997.2
  • Wire Binding Torque: 600
  • Length (IN): 8.688
  • Length (mm): 220.6752
  • Width (IN): 1.75
  • Width (mm): 44.45
  • Height (IN): 1.75
  • Height (mm): 44.45
  • Weight (LB): 2.184
  • Tang Width (mm): 0.254
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Silver
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: FALSE
  • Number of Conductors: 2
  • Number of Poles: 1
  • Number of Ports / Wireways: 2
  • Number of Ports Main: 1
  • Number of Ports Tap: 1
  • Wire Orientation: Parallel
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366985712
GTiN 00783669857122
Length 8.687 in
Width 1.750 in
Voltage 2000 Volt
Type SPA:SPLICER REDUCER
Material Aluminum
Applications Splicer/Reducer
Height 1.750 in
Standard CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
Temperature Rating 90 C
Family Brand Name ILSCO
Sub Brand ILSCO
Finish Tin Plated
Color Silver
Number of Conductors 2
Number of Ports 1
TC Connection Mechanical
