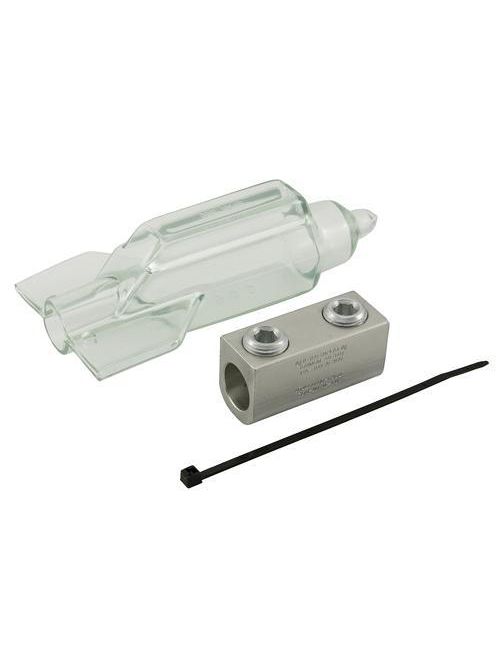

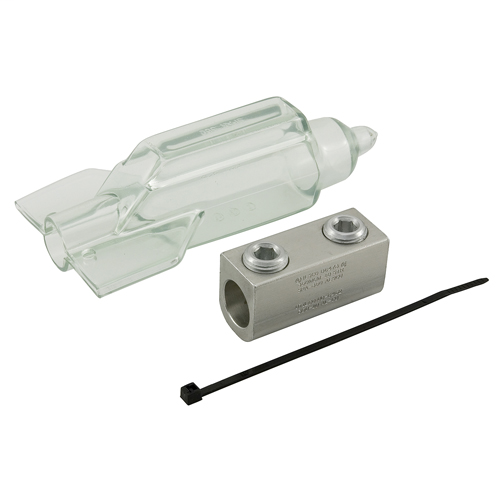

ILSCO SPAR-500 UL/CSA Listed 500 MCM 3/0 AWG Aluminum Insulated Splicer
$96.36/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # SPAR-500
North Coast Part # 843

Specifications

  • UPC Code: 78366985732
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 500 kcmil - 4 Str
  • Conductor Size CU (Primary, run, main, line): 500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 500 kcmil - 4 Str
  • Conductor Size AL (Primary, run, main, line): 500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
  • Conductor Range AL Stranded (Secondary, tap, load): 500 kcmil - 4 Str
  • Conductor Size AL (Secondary, tap, load): 500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
  • Drive Size Main: 8-Mar
  • Drive Type Main: Internal Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 13/16
  • Wire Binding Screw Size (mm): 33426.4
  • Wire Binding Torque: 375
  • Length (IN): 8.104
  • Width (IN): 3.62
  • Height (IN): 2.285
  • Weight (LB): 0.933
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: Plastisol
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Clear
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: FALSE
  • Number of Conductors: 2
  • Number of Poles: 1
  • Number of Ports Main: 1
  • Number of Ports Tap: 1
  • Wire Orientation: Parallel
  • Bag Quantity: 1
  • Upsell: PBT-500

Categories

Overview

UPC 78366985732
GTiN 00783669857320
Length 7.940 in
Finish Tin Plated
Width 3.660 in
Voltage 600 Volt
Type SPAR:SPLICER/REDUCER INS.
Material Aluminum
Conductor Size 500 MCM - 4 AWG
Applications Insulated Splicer-Recducer Connector
Height 2.280 in
Temperature Rating -45 to 90 C
Family Brand Name ILSCO
Conductor Type Aluminum
Blade Dimensions 7.94 in L x 3.66 in W x 2.28 in H
Sub Brand RocketSplice
Color Colorless
Number of Conductors 2
Number of Ports 1
TC Connection Mechanical
