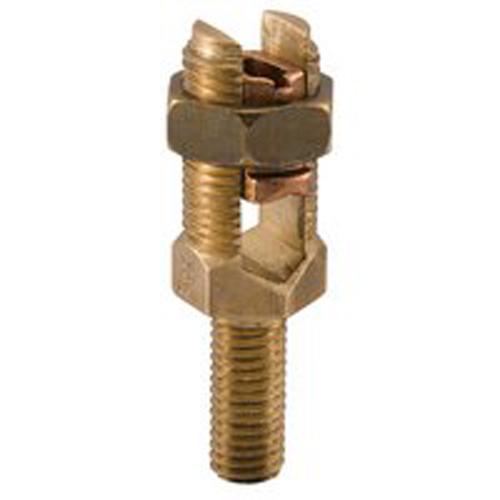

ILSCO SPSL-3 BRZ MEC SNGL 3-10 STUD
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$58.12/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # SPSL-3
North Coast Part # 426784

Specifications

  • UPC Code: 78366923323
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 3 Str - 10 Str
  • Conductor Range CU Solid (Primary, run, main, line): 2 Sol - 10 Sol
  • Conductor Size CU (Primary, run, main, line): 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,10 Sol,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str
  • Drive Size Main: 5/8,25/32
  • Drive Type Main: External Hex
  • Mounting Bolt/Stud Size: 3/8/2016
  • Number of Wire Binding Screws per Port: 1
  • Length (IN): 0
  • Width (IN): 0
  • Height (IN): 0
  • Weight (LB): 0.1725
  • Mounting Bolt/Stud Size (mm): 96926.4
  • Material: Bronze
  • Conductor Material: Copper
  • Color: Bronze
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: AP-100973-1
  • UL Control Number: 8M24
  • UL File Number: E158587
  • UL / CULUS Specification: UL 486A/B Listed,UL 467 Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Number of Conductors: 1
  • Number of Poles: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Bag Quantity: 1

Overview

UPC 78366923323
Item Long Description ILSCO Service Post Connector, Mechanical connection, Bronze material, mounting bolt/stud size 3/8-16 in, UL 486A/B Listed, UL 467 Listed, Copper Primary Conductor 3 Str - 10 Str and 2 Sol - 10 Sol, 1 conductors, 1 ports/wireways, Drive Type Main 5/8, 25/32 External Hex, rated for 35 kV, primary color Bronze, 1 poles,
GTiN 00783669233230
Type SPS:1 CONDUCTOR MALE
Applications Service Post Connector
Family Brand Name ILSCO
Sub Brand ILSCO
Finish NA
Color Bronze
Material Bronze
Number of Conductors 1
Temperature Rating 90 C
TC Connection Mechanical
