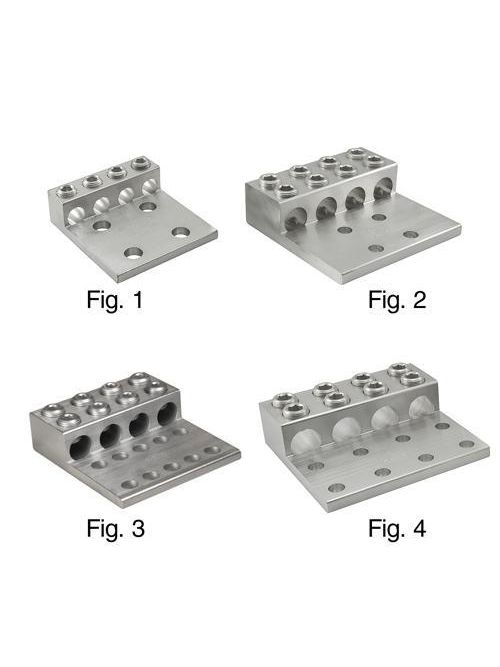

ILSCO T4A4-350N 1/2 Inch Stud Electrotinned Aluminum Alloy 4-Conductor 4-Hole Mechanical Lug
Product image thumbnail 0
Product image thumbnail 1
$240.75/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # T4A4-350N
North Coast Part # 63699

Specifications

  • UPC Code: 78366991220
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 350 kcmil - 6 Str
  • Conductor Size CU (Primary, run, main, line): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 350 kcmil - 6 Str
  • Conductor Size AL (Primary, run, main, line): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Drive Size Main: 16-May
  • Drive Type Main: Internal Hex
  • Mounting Bolt/Stud Size: 1/2/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-Nov
  • Wire Binding Screw Size (mm): 28346.4
  • Wire Binding Torque: 275
  • Length (IN): 4.312
  • Length (mm): 109.5248
  • Width (IN): 3.937
  • Width (mm): 99.9998
  • Height (IN): 1.375
  • Height (mm): 34.925
  • Weight (LB): 1.141
  • Dimension G (IN): 0.625
  • Mounting Bolt/Stud Size (mm): 304.8
  • Mounting Hole Diameter (IN): 0.563
  • Mounting Hole Diameter (mm): 14.3002
  • Mounting Hole Spacing (IN): 1.75
  • Mounting Hole Spacing (mm): 44.45
  • Tang Length (IN): 3
  • Tang Length (mm): 76.2
  • Tang Thickness (IN): 0.312
  • Tang Thickness (mm): 7.9248
  • Tang Width (IN): 3.937
  • Tang Width (mm): 99.9998
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Silver
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Mounting Hole Type: Thru
  • Number of Conductors: 4
  • Number of Mounting Holes: 4
  • Number of Poles: 1
  • Number of Ports / Wireways: 4
  • Number of Ports Main: 4
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366991220
GTiN 00783669912203
Type T4A:4 CONDUCTOR AL/CU
Material Aluminum
Applications Mechanical Lug, Four Conductor
Temperature Rating 90 C
Family Brand Name ILSCO
Sub Brand ILSCO
Finish Tin Plated
Color Silver
Number of Conductors 4
TC Connection Mechanical
Voltage 35,000 Volt
