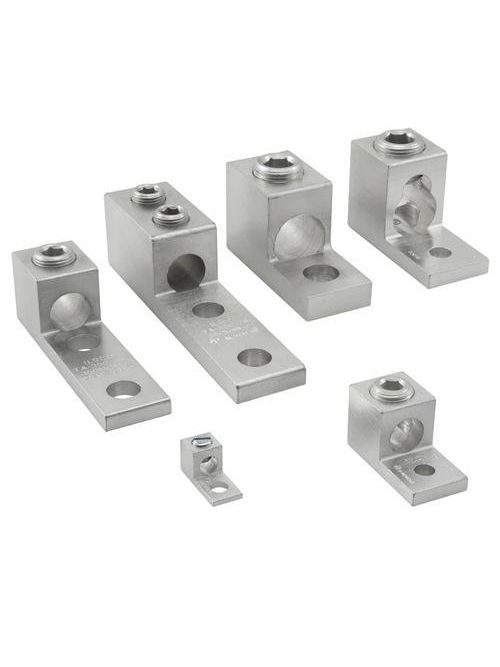

ILSCO TA-800-2NS 1/2 Inch Stud Electrotinned Aluminum Alloy 1-Conductor 2-Hole Mechanical Lug
$15.13/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # TA-800-2NS
North Coast Part # 266929

Specifications

  • UPC Code: 78366989218
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 800 kcmil - 300 kcmil
  • Conductor Size CU (Primary, run, main, line): 800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil
  • Conductor Range AL Stranded (Primary, run, main, line): 800 kcmil - 300 kcmil
  • Conductor Size AL (Primary, run, main, line): 800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil
  • Drive Size Main: 2-Jan
  • Drive Type Main: Internal Hex
  • Mounting Bolt/Stud Size: 1/2/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 15/16
  • Wire Binding Torque: 500
  • Length (IN): 4.75
  • Length (mm): 120.65
  • Width (IN): 1.75
  • Width (mm): 44.45
  • Height (IN): 1.938
  • Height (mm): 49.2252
  • Weight (LB): 0.666
  • Dimension G (IN): 0.625
  • Mounting Bolt/Stud Size (mm): 304.8
  • Mounting Hole Diameter (IN): 0.563
  • Mounting Hole Diameter (mm): 14.3002
  • Mounting Hole Spacing (IN): 1.75
  • Mounting Hole Spacing (mm): 44.45
  • Tang Length (IN): 3.125
  • Tang Length (mm): 79.375
  • Tang Thickness (IN): 0.5
  • Tang Thickness (mm): 12.7
  • Tang Width (IN): 1.75
  • Tang Width (mm): 44.45
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Silver
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Mounting Hole Type: Thru
  • Number of Conductors: 1
  • Number of Mounting Holes: 2
  • Number of Poles: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366989218
GTiN 00783669892185
Length 4.750 in
Finish Tin Plated
Width 1.750 in
Voltage 2000 Volt
Type TA:1 CONDUCTOR AL/CU
Material Aluminum
Conductor Size 800 - 300 MCM
Applications For Terminating Connector
Height 1.938 in
Standard UL File Number: E6207,CSA File Number: LR-29601,UL Specifications: UL 486A-B
Bolt Size 1/2 in
Temperature Rating 90 C
Family Brand Name ILSCO
Blade Dimensions 4-3/4 in L x 1-3/4 in W x 1.9380 in H
Mounting Hole Size 9/16 - 1-3/4 in
Sub Brand ClearChoice
Color Silver
Number of Conductors 1
TC Connection Mechanical
