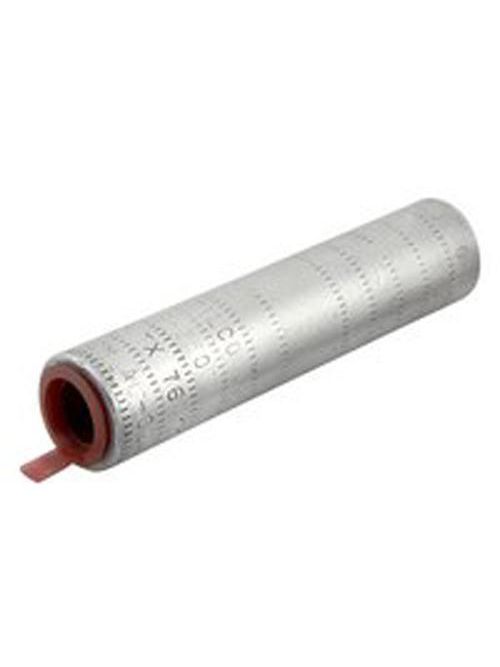

ILSCO UCS-2/0-Z AL CMP 2/0 W
$28.40/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # UCS-2/0-Z
North Coast Part # 828668

Specifications

  • UPC Code: 78366992966
  • UNSPSC Code: 39121449
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 2/0 Str
  • Conductor Size CU (Primary, run, main, line): 2/0 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 2/0 Str
  • Conductor Size AL (Primary, run, main, line): 2/0 Str
  • Length (IN): 4
  • Length (mm): 101.6
  • Width (IN): 0.906
  • Width (mm): 23.0124
  • Height (IN): 0.906
  • Height (mm): 23.0124
  • Weight (LB): 0.221
  • Inside Diameter (IN): 0.44
  • Inside Diameter (mm): 11.176
  • Outside Diameter (IN): 0.906
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Wax
  • Color: Silver
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Hard
  • Barrel Type: Long
  • Connection: Compression
  • Conductor Type: Stranded
  • Contains DE-OX: TRUE
  • Flared End: FALSE
  • ILSCOs Die Index Number: 13
  • Installing Dies: 249,840,TX,76,11A
  • Number of Mounting Holes: 0
  • Sight Window: FALSE
  • Bag Quantity: 1

Overview

UPC 78366992966
GTiN 00783669929669
Type UCS:UTILITY SLEEVE
Applications Aluminum Compression Sleeve
Temperature Rating 90 C
Family Brand Name ILSCO
Sub Brand ILSCO
Finish Wax
Size L:4;W:0.906;H:0.906 IN
Color Silver
Material Aluminum
TC Connection Compression
