Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # UCS-2-Z
North Coast Part # 494310


  • UPC Code: 78366992962
  • UNSPSC Code: 39121449
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 2 Str
  • Conductor Size CU (Primary, run, main, line): 2 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 2 Str
  • Conductor Size AL (Primary, run, main, line): 2 Str
  • Length (IN): 3.3
  • Length (mm): 83.82
  • Width (IN): 0.64
  • Width (mm): 16.256
  • Height (IN): 0.64
  • Height (mm): 16.256
  • Weight (LB): 0.069495917
  • Inside Diameter (IN): 0.34
  • Inside Diameter (mm): 8.636
  • Outside Diameter (IN): 0.64
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Wax
  • Color: Silver
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Hard
  • Barrel Type: Long
  • Connection: Compression
  • Conductor Type: Stranded
  • Contains DE-OX: TRUE
  • Flared End: FALSE
  • ILSCOs Die Index Number: 9
  • Installing Dies: BG,5/8,8A
  • Number of Mounting Holes: 0
  • Sight Window: FALSE
  • Bag Quantity: 1


GTiN 00783669929621

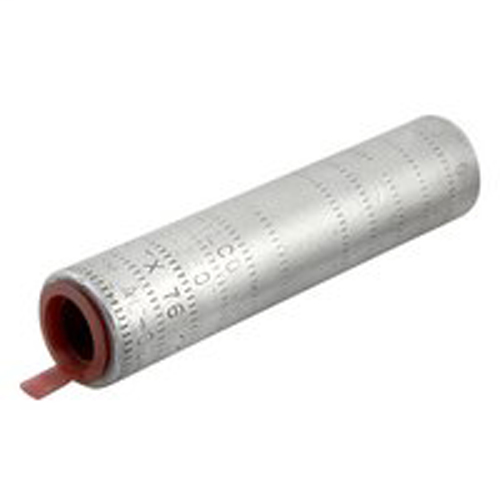

Applications Aluminum Compression Sleeve
Temperature Rating 90 C
Family Brand Name ILSCO
Sub Brand ILSCO
Product UPC 78366992962
Finish Wax
Size L:3.3;W:0.64;H:0.64 IN
Color Silver
Material Aluminum
TC Connection Compression
Voltage NA kV
