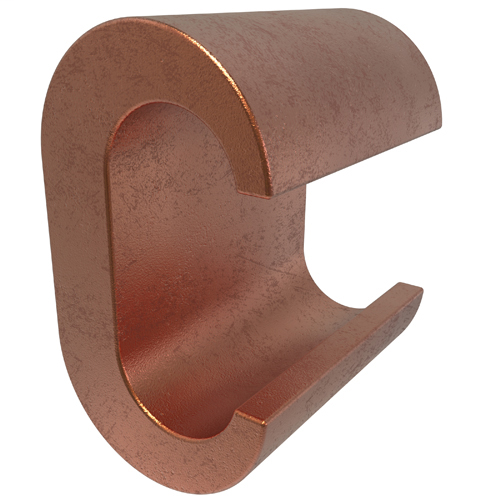

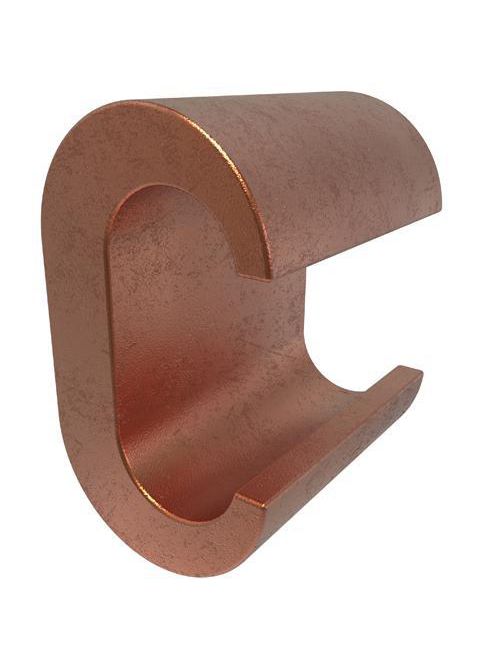

ILSCO ULT-7-Z 2 to 2 AWG Run or Tap 7/8 x 39/64 x 1-1/16 Inch Copper Alloy Compression C-Tap Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # ULT-7-Z
North Coast Part # 332753


  • UPC Code: 78366993081
  • UNSPSC Code: 39121448
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 2 Str
  • Conductor Range CU Solid (Primary, run, main, line): 2 Sol
  • Conductor Size CU (Primary, run, main, line): 2 Sol,2 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 2 Str
  • Conductor Range CU Solid (Secondary, tap, load): 2 Sol
  • Conductor Size CU (Secondary, tap, load): 2 Sol,2 Str
  • Length (IN): 1.047
  • Width (IN): 0.614
  • Height (IN): 0.826
  • Weight (LB): 0.084
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Bare
  • Color: Copper
  • Direct Burial: TRUE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed,UL 467 Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Hard
  • Conductor Type: Solid,Stranded
  • Number of Mounting Holes: 0
  • Bag Quantity: 1
  • CrossSell: ILD-C, DE-OX-C-8OZ, TB-12U1000-P


UPC 78366993081
Item Long Description Permaground Copper Compression Grounding C Crimp, Copper material, Bare plated connector, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper Primary Conductor 2 Str and 2 Sol, Copper Secondary Conductor 2 Sol and 2 Str, rated for 35 kV, primary color Copper, die index ND-C,
GTiN 00783669930818
Applications Copper Compression Grounding C Crimp
Family Brand Name ILSCO
Sub Brand Permaground
Size L:1.047;W:0.614;H:0.826 IN
Color Copper
Temperature Rating 90 C
Voltage 35,000 Volt
