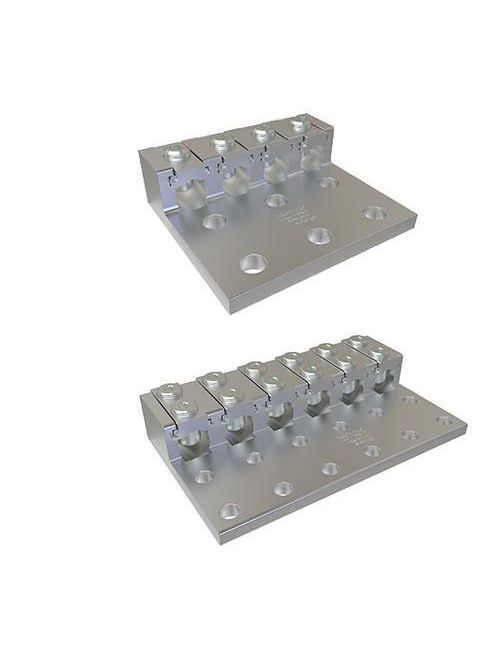

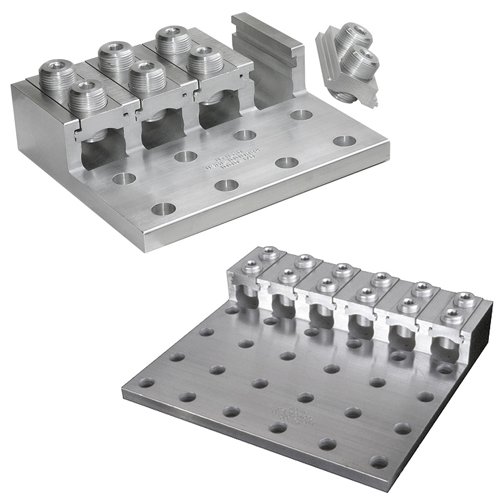

ILSCO USGL-600R84 AL LAY IN (4)600-
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$308.73/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # USGL-600R84
North Coast Part # 760693

Specifications

  • UPC Code: 78366900309
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 600 kcmil - 2 Str
  • Conductor Size CU (Primary, run, main, line): 600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 600 kcmil - 2 Str
  • Conductor Size AL (Primary, run, main, line): 600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
  • Drive Size Main: 16-May
  • Drive Type Main: Internal Hex
  • Mounting Bolt/Stud Size: 1/2/2020
  • Number of Wire Binding Screws per Port: 2
  • Wire Binding Screw Size: 4-Mar
  • Wire Binding Torque: 450
  • Length (IN): 5.97
  • Width (IN): 6.45
  • Height (IN): 1.813
  • Weight (LB): 2.832
  • Dimension G (IN): 0.625
  • Dimension G (mm): 15.875
  • Mounting Bolt/Stud Size (mm): 304.8
  • Mounting Hole Diameter (IN): 0.563
  • Mounting Hole Diameter (mm): 14.3002
  • Mounting Hole Spacing (IN): 1.75
  • Mounting Hole Spacing (mm): 44.45
  • Tang Length (IN): 3.625
  • Tang Length (mm): 92.075
  • Tang Thickness (IN): 0.5
  • Tang Thickness (mm): 12.7
  • Tang Width (IN): 6.45
  • Tang Width (mm): 163.83
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Clear
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Silver
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: FALSE
  • Mounting Hole Type: Thru
  • Number of Conductors: 4
  • Number of Mounting Holes: 8
  • Number of Poles: 1
  • Number of Ports / Wireways: 4
  • Number of Ports Main: 4
  • Wire Orientation: Perpendicular
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366900309
Item Long Description Cleartrax Lay-In Connector, Mechanical connection, Dual Rated, Aluminum material, Clear plated connector,8 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, Copper/Aluminum Primary Conductor 600 kcmil - 2 Str, 4 conductors, 4 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,
GTiN 00783669003093
Type USGL:LAY IN HEAVY DUTY
Applications Lay-In Connector
Temperature Rating 90 C
Family Brand Name ILSCO
Number of Ports 4
Sub Brand Cleartrax
Finish Clear
Color Silver
Material Aluminum
Number of Conductors 4
TC Connection Mechanical
Voltage 35,000 Volt
