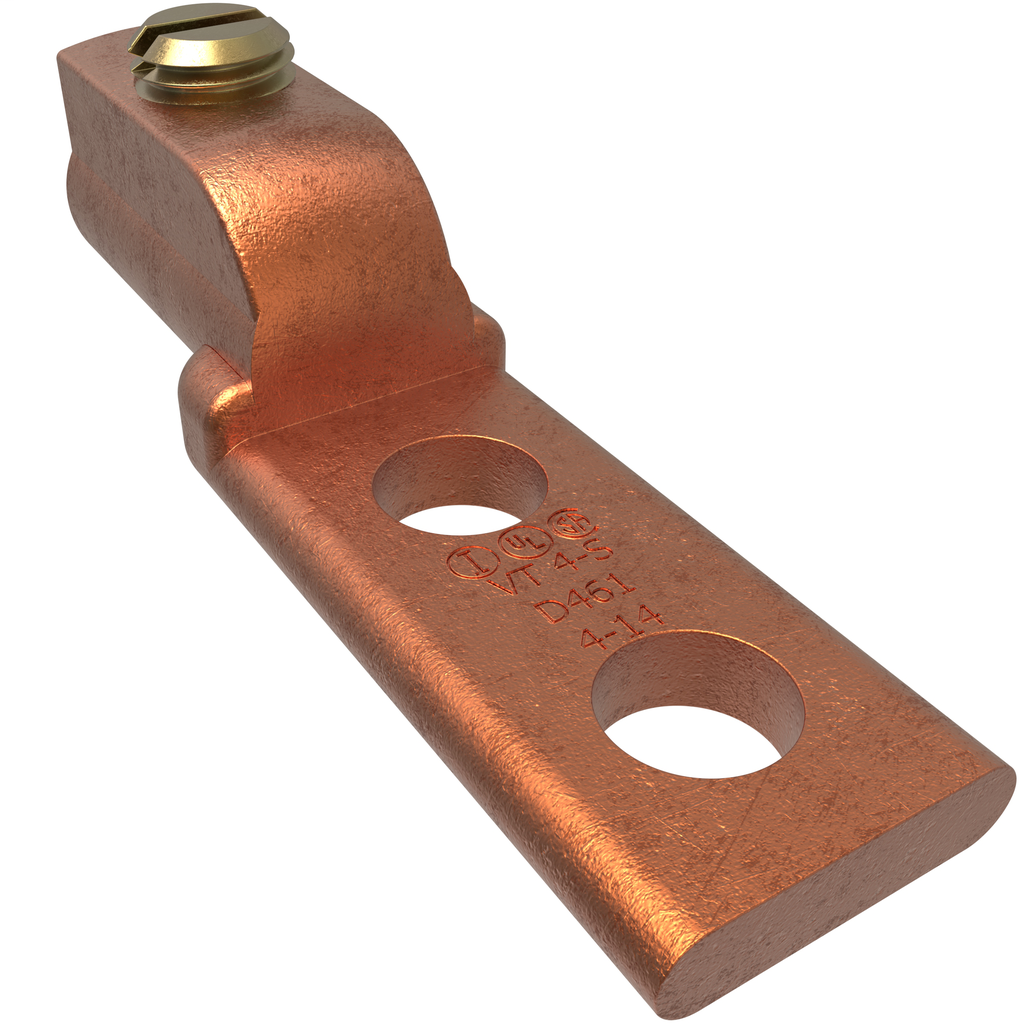

ILSCO VT-4-S CU MEC 4-14 15/64-1/2
$8.87/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # VT-4-S
North Coast Part # 821690

Specifications

  • UPC Code: 78366995405
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 4 Str - 14 Str
  • Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Drive Type Main: Slotted
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-Jul
  • Wire Binding Torque: 10 - 18 AWG = 20,8 AWG = 25,4 - 6 AWG = 35,2 AWG = 40
  • Length (IN): 1.75
  • Length (mm): 44.45
  • Width (IN): 0.5
  • Width (mm): 12.7
  • Height (IN): 0.469
  • Height (mm): 11.9126
  • Weight (LB): 0.037
  • Dimension G (IN): 0.25
  • Mounting Bolt/Stud Size (mm): 254
  • Mounting Hole Diameter (IN): 0.234
  • Mounting Hole Diameter (mm): 5.9436
  • Mounting Hole Spacing (IN): 0.5
  • Mounting Hole Spacing (mm): 12.7
  • Tang Length (IN): 1
  • Tang Length (mm): 25.4
  • Tang Thickness (IN): 0.122
  • Tang Thickness (mm): 3.0988
  • Tang Width (IN): 0.5
  • Tang Width (mm): 12.7
  • Material: Copper
  • Conductor Material: Copper
  • Wire Binding Hardware Material: Steel
  • Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
  • Color: Copper
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Mounting Hole Type: Thru
  • Number of Conductors: 1
  • Number of Mounting Holes: 2
  • Number of Poles: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Categories

Overview

UPC 78366995405
GTiN 00783669954050
Type LO:1&2 HOLES STRAIGHT
Applications Mechanical Lug, One Conductor
Family Brand Name ILSCO
Sub Brand ILSCO
Finish NA
Color Copper
Material Copper
Number of Conductors 1
Temperature Rating 90 C
TC Connection Mechanical
Voltage null
