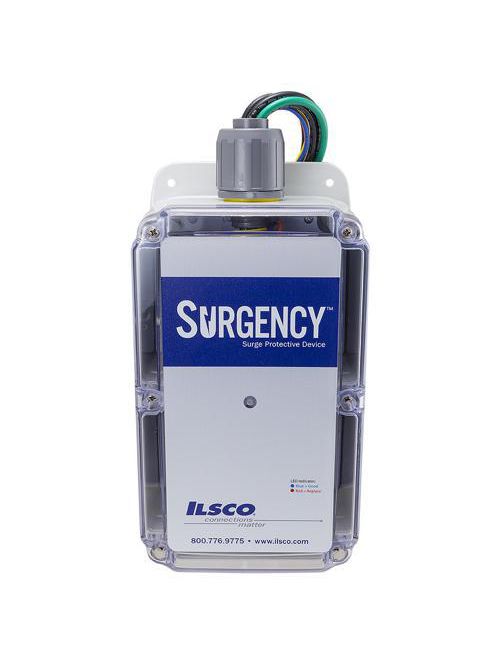

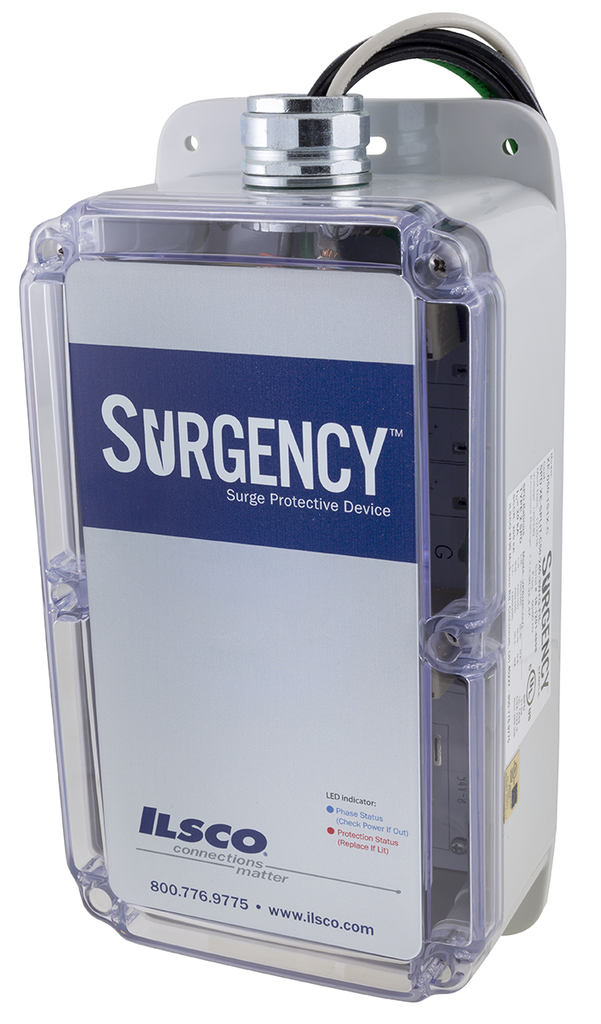

ILSCO XE-100-1S1X-B SPD-XE-SPLIT-B1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,133.31/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # XE-100-1S1X-B
North Coast Part # 1345572

Specifications

  • UPC Code: 78366901101
  • UNSPSC Code: 39121610
  • Conduit Hub Size: 4-Mar
  • Lead Wire Size: 10 AWG
  • Length (IN): 5.245
  • Length (mm): 133.223
  • Width (IN): 3.296
  • Width (mm): 83.7184
  • Height (IN): 10.569
  • Height (mm): 268.4526
  • Weight (LB): 0.962450665
  • Material: Polycarbonate
  • Environmental Conditions: Enclosure rated to NEMA/UL Type 1/2/3/3R/3X/4/4X
  • CSA Standard: C22.2 No. 269.1-14
  • UL Control Number: E315947
  • UL File Number: E484255
  • UL / CULUS Specification: UL/cUL 1449 Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Warranty: 10 Year
  • System: Split
  • Phase: 1
  • Surge Current Rating: 100 kA
  • UL Voltage Protection Rating L-G: 700
  • UL Voltage Protection Rating L-L: 1000
  • UL Voltage Protection Rating L-N: 700
  • UL Voltage Protection Rating N-G: 700
  • Dry relaying contact: TRUE
  • Electrical Noise Filter: FALSE
  • Short Circuit Current Rating (SCCR): 200 kA
  • Outlet: None
  • Nominal Discharge Current: 20 kA
  • UL/CSA Type: 1
  • AC Frequency: 50/60 Hz
  • Mounting Method: Mountable or flush mountable with flush mount kit
  • Type Of Indicators: Blue indicator LED,Audible Alarm,Relay Contacts
  • Nominal Voltage: 120/240 V
  • Operating Temperature: -40°C to 65°C
  • Bag Quantity: 1
  • CrossSell: FMP0241KIT

Overview

UPC 78366901101
Item Long Description Surgency Surge Protection, Polycarbonate material, UL/cUL 1449 Listed, C22.2 No. 269.1-14, surge system type Split, phase 1, 100 kA surge current rating, UL voltage protection rating L-G 700, UL voltage protection rating L-L 1000, UL voltage protection rating L-N 700, UL voltage protection rating N-G 700, dry relaying contact, AC frequency 50/60 Hz, Conduit hub size 3/4,
GTiN 00783669011012
Frequency 50 Hz
Family Brand Name ILSCO
Nominal Discharge Current 20 kA
Operating Temperature -40C to 65C
Type SPLIT:SPD SPLIT PHASE
Material Polycarbonate
Applications Surge Protection
Environmental Conditions Enclosure rated to NEMA/UL Type 1/2/3/3R/3X/4/4X
Sub Brand Surgency
