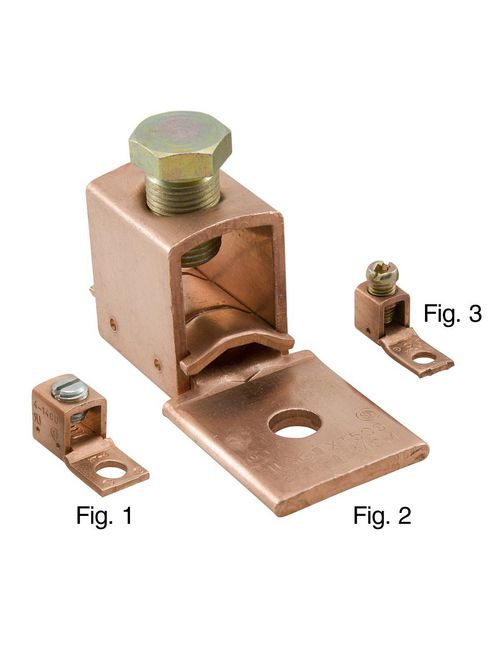

ILSCO XT-0 6 to 1/0 AWG 1/4 Inch Stud Copper 1-Conductor 1-Hole Mechanical Lug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$7.90/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # XT-0
North Coast Part # 426387

Specifications

  • UPC Code: 78366995739
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str - 6 Str
  • Conductor Size CU (Primary, run, main, line): 1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Wire Combinations: (2) 6 Str,(2) 8 Str
  • Drive Type Main: Slotted
  • Mounting Bolt/Stud Size: 1/4/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-Sep
  • Wire Binding Torque: 1/0 - 2 AWG = 50,4 - 6 AWG = 45
  • Length (IN): 1.531
  • Width (IN): 0.625
  • Height (IN): 0.75
  • Weight (LB): 0.077
  • Dimension G (IN): 0.437
  • Dimension G (mm): 11.0998
  • Mounting Hole Diameter (IN): 0.266
  • Tang Length (IN): 0.906
  • Tang Length (mm): 23.0124
  • Tang Thickness (IN): 0.125
  • Tang Thickness (mm): 3.175
  • Tang Offset (IN): 0.078
  • Tang Offset (mm): 1.9812
  • Tang Width (IN): 0.625
  • Tang Width (mm): 15.875
  • Material: Copper
  • Conductor Material: Copper
  • Wire Binding Hardware Material: Steel
  • Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
  • Color: Copper
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Mounting Hole Type: Thru
  • Number of Conductors: 12
  • Number of Mounting Holes: 1
  • Number of Poles: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

GTiN 00783669957396
Length 1.531 in
Width 0.625 in
Voltage 2000 Volt
Type XT:STRAIGHT TONGUE
Applications For use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used for Copper Conductor Only
Pkg Qty 50
Family Brand Name ILSCO
Sub Brand ClearChoice
Product UPC 78366995739
Finish Electrolytic
Color Copper
Material Copper
Number of Conductors 1
Conductor Size 6-1/0 AWG
Tongue Type Straight
Bolt Size 1/4 in
Temperature Rating 90 C
Conductor Type Copper
TC Connection Mechanical
Blade Dimensions 1-17/32 in L x 1 in H
