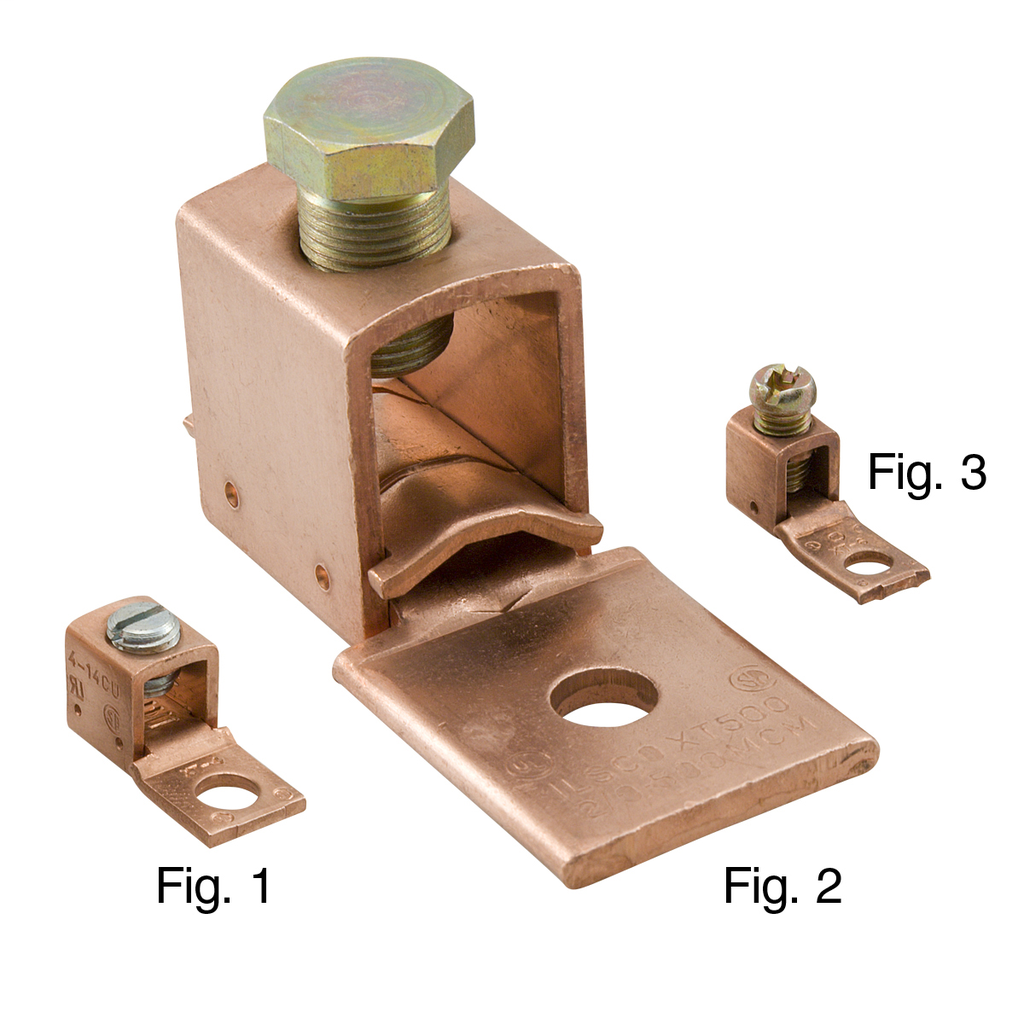

ILSCO XT-4DB CU MEC 4-14 17/64 B UL
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$15.06/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # XT-4DB
North Coast Part # 754659

Specifications

  • UPC Code: 78366995757
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 4 Str - 14 Str
  • Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Wire Combinations: (2) 14 Sol/Str,(2) 12 Sol/Str,(2) 10 Sol/Str,(2) 8 Str,(4) 16 Sol/Str
  • Drive Type Main: Slotted
  • Mounting Bolt/Stud Size: 1/4/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 8-Mar
  • Wire Binding Screw Size (mm): 965.2
  • Wire Binding Torque: 4 - 6 AWG = 45,8 AWG = 40,10 - 14 AWG = 35
  • Length (IN): 1.12
  • Width (IN): 0.5
  • Height (IN): 0.575
  • Weight (LB): 0.041
  • Dimension G (IN): 0.25
  • Dimension G (mm): 6.35
  • Mounting Hole Diameter (IN): 0.265
  • Mounting Hole Diameter (mm): 6.731
  • Tang Length (IN): 0.51
  • Tang Length (mm): 12.954
  • Tang Thickness (IN): 0.082
  • Tang Thickness (mm): 2.0828
  • Tang Offset (IN): 0.072
  • Tang Offset (mm): 1.8288
  • Tang Width (IN): 0.5
  • Tang Width (mm): 12.7
  • Material: Copper
  • Conductor Material: Copper
  • Wire Binding Hardware Material: Copper
  • Wire Binding Hardware Finish: Bright Dip
  • Color: Copper
  • Direct Burial: TRUE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Mounting Hole Type: Thru
  • Number of Conductors: 124
  • Number of Mounting Holes: 1
  • Number of Poles: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366995757
Item Long Description ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, 1, 2, 4 conductors, 1 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Copper, 1 poles,
GTiN 00783669957570
Type XT:STRAIGHT TONGUE
Applications Mechanical Lug, One Conductor
Family Brand Name ILSCO
Sub Brand ILSCO
Finish NA
Color Copper
Material Copper
Temperature Rating 90 C
TC Connection Mechanical
Voltage 35,000 Volt
