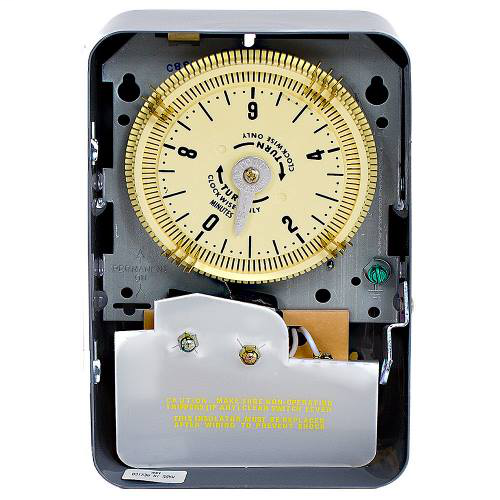

Intermatic C8815 NEMA 1 125 VAC 60 Hz 20 Amp SPDT Electromechanical Time Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # C8815
North Coast Part # 217638

Features & Applications


  • Repeat cycling for ON times
  • 10 trippers provided
  • Dials have 120 slots
  • Type 1 indoor metal enclosure


  • Ventilating Fans
  • Fogging Equipment
  • Process Equipment
  • Poultry & Livestock Feeders
  • Spraying Equipment


  • Mechanism Type: Analog/Mechanical
  • Tripper Actuating Time: 5 sec
  • Cycle Duration: 10 min
  • Maximum ON/OFF Operations: 0
  • Input Voltages Display: 125 VAC, 60 Hz
  • Switch Type: SPDT
  • Warranty: 1-year

Documents & Downloads

Product Rating

Related Accessories and Parts

  • 133T773A: Replacement Snap Switch for C8800 Series
  • 156T1950A: Set of 12 Trippers for T1900, T2000, C8800, R8800 and T8800 Series


UPC 07827514101
Item Long Description The C8800 Series Short Range Cycle Timers come in various timing durations allowing for unprecedented control for various applications. These time switches can handle resistive loads up to 20 A and electric motor loads up to 1 HP at 240 VAC.
GTiN 00078275141018
Warranty Length 1 yr
Size 7-3/4 HEIGHT X 5 WIDTH X 3 DEPTH IN, 19.7 HEIGHT X 12.7 WIDTH X 7.62 DEPTH CM
Operating Temperature -40 To 130 F
Voltage 125 Volt
Type Short Range Cycle
Applications Ventilating Fans, Fogging Equipment, Process Equipment, Poultry and Livestock Feeders, Spraying Equipment
Mounting Type Wall Mount
Standard CCSAus Certified
Frequency 60 Hz
Connection Type Ring-Type
Wattage 3 Watt
Switch Type SPDT
Input Voltage 125 V
Family Brand Name Intermatic
TC Connection Ring-Type
Contact Configuration 1 NO/1 NC
Amperage 20 Amp
Power Consumption 3 WTT
Contact Rating 20 AMP @ 125/208 - 277 VAC (Resistive)
Number of Poles 1 Pole
Enclosure NEMA 1
Action SPDT
Operating Cycles 100k
