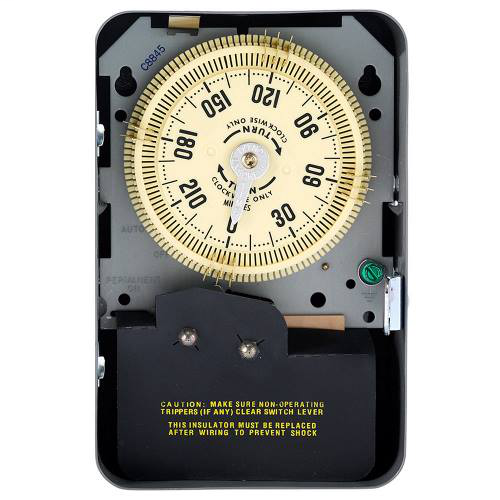

Intermatic C8845 NEMA 1 125 VAC 60 Hz 20 Amp SPDT Electromechanical Time Switch

$268.80/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features & Applications

UPC	07827514301
GTiN	00078275143012
Warranty Length	1 yr
Size	7-3/4 HEIGHT X 5 WIDTH X 3 DEPTH IN, 19.7 HEIGHT X 12.7 WIDTH X 7.62 DEPTH CM
Operating Temperature	-40 To 130 F
Voltage	125 Volt
Type	Short Range Cycle
Applications	Ventilating Fans, Fogging Equipment, Process Equipment, Poultry and Livestock Feeders, Spraying Equipment
Mounting Type	Wall Mount
Standard	CCSAus Certified
Frequency	60 Hz
Connection Type	Ring-Type
Wattage	3 Watt
Switch Type	SPDT
Input Voltage	125 V
Family Brand Name	Intermatic
TC Connection	Ring-Type
Contact Configuration	1 NO/1 NC
Amperage	20 Amp
Power Consumption	3 WTT
Contact Rating	20 AMP @ 125/208 - 277 VAC (Resistive)
Number of Poles	1 Pole
Enclosure	NEMA 1
Action	SPDT
Operating Cycles	100k
