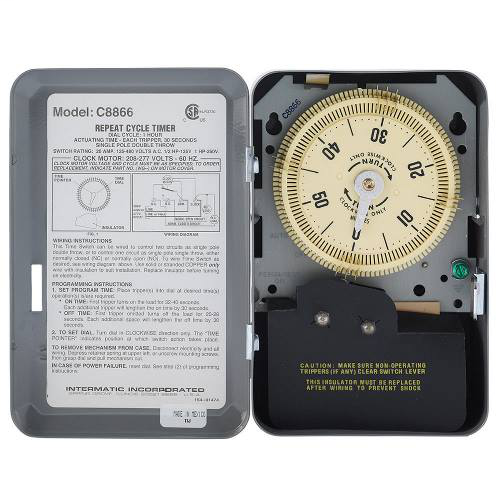

INT-MAT C8866 CYCLE TIMER 220V-60C
Product image thumbnail 0
Product image thumbnail 1
$276.23/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # C8866
North Coast Part # 218098

Features & Applications

Features

  • Repeat cycling for ON times
  • 10 trippers provided
  • Dials have 120 slots
  • Type 1 indoor metal enclosure

Applications

  • Ventilating Fans
  • Fogging Equipment
  • Process Equipment
  • Poultry & Livestock Feeders
  • Spraying Equipment

Specifications

  • Mechanism Type: Analog/Mechanical
  • Tripper Actuating Time: 1 hour
  • Cycle Duration: 1 hour
  • Maximum ON/OFF Operations: 0
  • Input Voltages Display: 208-277 VAC, 60 Hz
  • Switch Type: SPDT
  • Warranty: 1-year

Documents & Downloads

Product Rating

Related Accessories and Parts

  • 133T773A: Replacement Snap Switch for C8800 Series
  • 156T1950A: Set of 12 Trippers for T1900, T2000, C8800, R8800 and T8800 Series

Overview

UPC 07827514302
GTiN 00078275143029
Warranty Length 1 yr
Size 7-3/4 HEIGHT X 5 WIDTH X 3 DEPTH IN, 19.7 HEIGHT X 12.7 WIDTH X 7.62 DEPTH CM
Operating Temperature -40 To 54 C
Type Short Range Cycle
Applications Ventilating Fans, Fogging Equipment, Process Equipment, Poultry and Livestock Feeders, Spraying Equipment
Mounting Type Wall Mount
Standard CCSAus Certified
Frequency 60 Hz
Connection Type Ring-Type
Wattage 3 Watt
Switch Type SPDT
Input Voltage 208-277 V
Family Brand Name Intermatic
TC Connection Ring-Type
Contact Configuration 1 NO/1 NC
Amperage 20 Amp
Power Consumption 3 WTT
Contact Rating 20 AMP @ 125/208 - 277 VAC (Resistive)
Number of Poles 1 Pole
Enclosure NEMA 1
Action SPDT
Operating Cycles 100k
Voltage null
