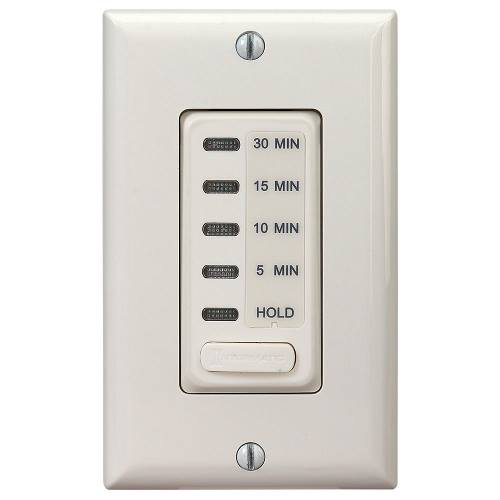

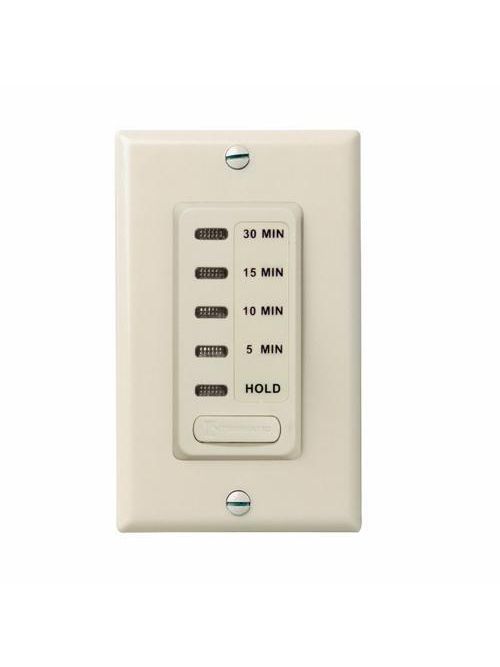

Intermatic EI200LA 5/10/15/30 Minute 120 VAC 60 Hz 1-Pole Light Almond Electronic Auto-Off Timer with Hold
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$57.00/ea
In Stock | 4 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # EI200LA
North Coast Part # 63565

Features & Applications

Features

  • Provides silent operation in time ranges from five minutes to 12 hours
  • Single button time selection, with some models having a HOLD mode, for continuous ON operation
  • Replaces single-pole switches in a variety of applications
  • Incandescent/fluorescent/CFL/LED compatible
  • For use with decorator-style wall plate (not included
  • Requires neutral connection

Applications

  • Bathroom Fans
  • Spas
  • Hot Tubs
  • Storage Closets
  • Garage Lights

Specifications

  • Color: Light Almond
  • Wiring Configurations: Single
  • Time Presets: 10 min, 15 min, 30 min, 5 min
  • Hold Mode Included: No
  • Neutral Connection Required: No
  • Operating Temperature Max (°C): 50
  • Operating Temperature Max (F): 122
  • Operating Temperature Min (°C): 0
  • Operating Temperature Min (F): 32
  • Product Weight (kg): 0.181
  • Product Weight (lbs): 0.399
  • Product Height (in): 4.125
  • Product Height (mm): 104.8
  • Product Width (in): 1.6875
  • Product Width (mm): 42.93
  • Product Depth (in): 1.4375
  • Product Depth (mm): 36.5
  • Warranty: 1-year limited

Documents & Downloads

Product Rating

Overview

UPC 07827510057
GTiN 00078275100572
Warranty Length 1 yr
Width 1.6875 in
Size 2.79 HEIGHT X 1.75 WIDTH X 1.44 DEPTH IN, 70.86 HEIGHT X 44.45 WIDTH X 36.57 DEPTH MM
Color Light Almond
Operating Temperature 122 degrees F
Voltage 120 Volt
Type Electronic, Countdown, Auto Shut-Off, 1-Pole
Material Thermoplastic
Applications Indoor, CFLs Lighting, LED Lighting, Fans, HVACR
Mounting Type Wall Mount
Depth 1.4375 in
Height 4.125 in
Weight 0.399 lb
Standard CULus Listed,HVACR
Frequency 50/60 Hz
Wattage 1800 Watt
Temperature Rating 32 - 122 F
Family Brand Name Intermatic
Contact Configuration SPST - 1 NO
Amperage 15 Amp
Max Operating Temperature 122 degrees F
Blade Dimensions 1-3/4 in W x 1.44 in D x 2.79 in H
Min Operating Temperature 32 degrees F
Contact Rating 8.3 A at 120 VAC (Tungsten-Incandescent), 15 A at 120 VAC (Resistive-Heater), 8 A at 120 VAC (Ballast-Magnetic), 1800 W
Number of Poles 1 Pole
Action SPST
