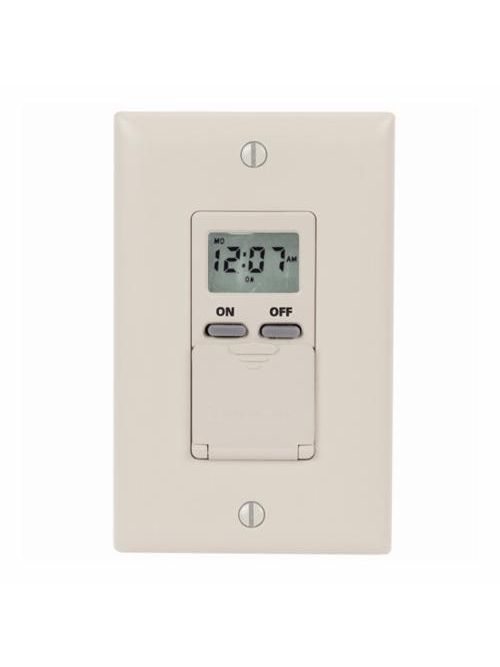

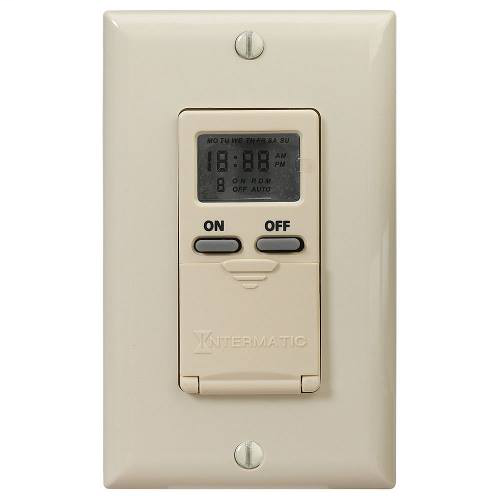

Intermatic EI500C 7-Day 120 VAC 60 Hz 15 Amp Ivory Programmable Timer
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$58.24/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # EI500C
North Coast Part # 332171

Features & Applications

Features

  • 7-day programmable schedules with 14 ON/OFF events
  • Automatic Daylight Saving Time (DST) adjustment
  • Random mode varies ON/OFF schedule to provide a "lived-in" appearance
  • Single pole circuit
  • Incandescent/fluorescent/CFL/LED compatible
  • Built-in rechargeable, non-serviceable battery backup
  • Requires neutral connection

Applications

  • Entryway Lighting
  • Deck Light Controls
  • Landscape Light Controls
  • Attic Fans
  • Pumps
  • Hallway Lighting
  • Small Commercial Signage and Store Lighting

Specifications

  • Color: Ivory
  • Operation Mode: 24-hours
  • Operation Features: Daylight Saving Time
  • Input Voltages Display: 125 VAC, 60 Hz
  • Wiring Configurations: Single
  • Neutral Connection Required: No
  • Battery Type: Rechargeable
  • Operating Temperature Max (°C): 40
  • Operating Temperature Max (F): 104
  • Operating Temperature Min (°C): 0
  • Operating Temperature Min (F): 32
  • Product Weight (kg): 0.159
  • Product Weight (lbs): 0.351
  • Product Height (in): 4.125
  • Product Height (mm): 104.8
  • Product Width (in): 1.75
  • Product Width (mm): 44.5
  • Product Depth (in): 1.4375
  • Product Depth (mm): 36.5
  • Warranty: 1-year limited

Documents & Downloads

Product Rating

Categories

Overview

UPC 07827510521
Item Long Description For installation on 15 A circuits, this timer provides 24-hour or 7-day programming of lights, fans, pumps and other medium-duty loads.
GTiN 00078275105218
Warranty Length 1 yr
Width 1.75 in
Size 2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM
Color Ivory
Operating Temperature 122 degrees F
Voltage 120 Volt
Type Decorator Digital In-Wall
Applications Incandescent Lighting, Fluorescent Lighting, HVACR, CFL Lighting, LED Lighting
Mounting Type Wall Mount
Depth 1.4375 in
Height 4.125 in
Weight 0.351 lb
Standard CULus Listed,HVACR
Frequency 60 Hz
Wattage 1875 Watt
Input Voltage 125 V
Family Brand Name Intermatic
Contact Configuration 1 NO
Amperage 15 Amp
Max Operating Temperature 104 degrees F
Min Operating Temperature 32 degrees F
Contact Rating 15 AMP @ 120 VAC (Resistive Heater), 8.3 AMP @ 120 VAC (Tungsten Incandescent), 8 AMP @ 120 VAC (Ballast Magnetic)
Number of Poles 1 Pole
Action SPST
