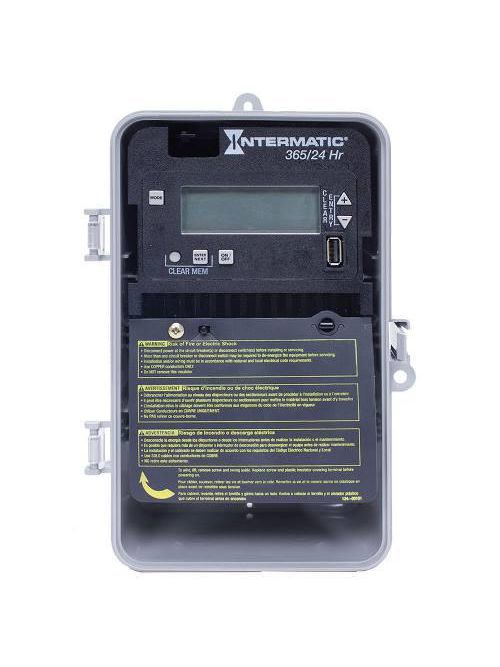

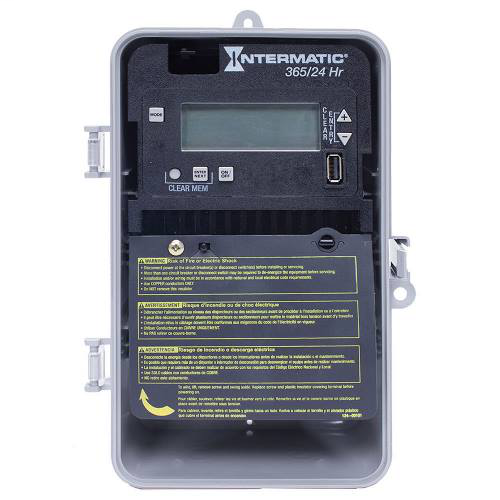

INT-MAT ET2105CP T/S-ELEC,1CH,24HR,
$378.01/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # ET2105CP
North Coast Part # 1830171

Features & Applications

Features

  • 100-hour supercapacitor eliminates the need for batteries
  • Up to 96 set points or events
  • Up to 50 holiday blocks with schedule capabilities
  • Automatic input voltage selection from 120 to 277 VAC, 60 Hz
  • Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
  • Configurable outputs allow the control of various voltages and applications
  • Relays incorporate zero-crossing technology to extend the life of the control
  • Non-volatile EEPROM memory protects programming indefinitely
  • LED compatible
  • USB port makes transferring and saving of schedules easy
  • 2-year limited warranty

Applications

  • Interior Lighting
  • Exterior Lighting
  • Electric Pumps
  • Electric Motor Control
  • Various Other Electrical Loads

Specifications

  • Maximum ON/OFF Operations: 96
  • Maximum ON/OFF Times: Indefinite
  • Minimum ON/OFF Times: 1 min
  • Backup Protection Time: 100 Hour
  • Backup Restoration Time: 30 Minutes
  • Backup Type: Supercapacitor
  • Switch Type: SPST
  • Number of Circuits: 1
  • Operation Features: Holiday
  • Operation Mode: 24-hour
  • Resistive (NO): 30 A, 120/240 VAC, 60 Hz
  • Inductive (NO): 30 A, 120/240 VAC, 60 Hz
  • Magnetic Ballast (NO): 20 A, 120-277 VAC, 60 Hz
  • Tungsten (NO): 5 A, 120-277 VAC, 60 Hz
  • Motor (NO): 1 HP, 120 VAC, 60 Hz 2 HP, 240 VAC, 60 Hz
  • Operating Temperature Max (°C): 40
  • Operating Temperature Max (F): 104
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Enclosure Type: Outdoor Type 3R Plastic
  • Product Height (in): 10
  • Product Height (mm): 254
  • Product Width (in): 6.5
  • Product Width (mm): 165.1
  • Product Depth (in): 4
  • Product Depth (mm): 101.6

Documents & Downloads

Product Rating


Overview

UPC 07827514797
GTiN 00078275147973
Width 6.5 in
Operating Temperature 155 degrees F
Type Electronic
Applications Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor/Outdoor
Mounting Type Wall Mount
Depth 4 in
Height 10 in
Wire Size 18-10 AWG
Standard UL Rating,Meet Title 20/24 Compliance
Frequency 50/60 Hz
Connection Type Wire Lead
Switch Type SPST
Family Brand Name Intermatic
TC Connection Wire Lead
Contact Configuration 1 NO
Amperage 30 Amp
Max Operating Temperature 104 degrees F
Min Operating Temperature -40 degrees F
Contact Rating 30 AMP @ 120/240 VAC, 20 AMP @ 28 VDC (Resistive), 30 AMP @ 120/240 VAC (Inductive), 5 AMP @ 120/240 VAC (Tungsten), 20 AMP @ 120 - 277 VAC, 10 AMP @ 120/277 VAC (Ballast)
Number of Poles 1 Pole
Enclosure Type 3R Plastic
Action SPST
Voltage null
