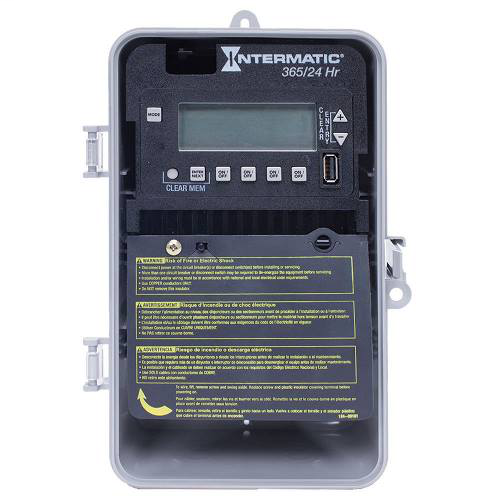

INT-MAT ET2145CP T/S-ELEC,4CH,24HR,

Features & Applications

Features

• 100-hour supercapacitor eliminates the need for batteries
• Up to 96 set points or events
• Up to 50 holiday blocks with schedule capabilities
• Automatic input voltage selection from 120 to 277 VAC, 60 Hz
• Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
• Configurable outputs allow the control of various voltages and applications
• Relays incorporate zero-crossing technology to extend the life of the control
• Non-volatile EEPROM memory protects programming indefinitely
• LED compatible
• USB port makes transferring and saving of schedules easy
• 2-year limited warranty

Applications

• Interior Lighting
• Exterior Lighting
• Electric Pumps
• Electric Motor Control
• Various Other Electrical Loads

Specifications

• Maximum ON/OFF Operations: 96
• Maximum ON/OFF Times: Indefinite
• Maximum Pulse Time: 2 sec
• Minimum ON/OFF Times: 1 min
• Minimum Pulse Time: 2 sec
• Backup Protection Time: 100 Hour
• Backup Restoration Time: 30 Minutes
• Backup Type: Supercapacitor
• Switch Type: SPST
• Number of Circuits: 4
• Operation Features: Holiday
• Operation Mode: 24-hour
• Resistive (NO): 30 A, 120/240 VAC, 60 Hz
• Inductive (NO): 30 A, 120/240 VAC, 60 Hz
• Magnetic Ballast (NO): 20 A, 120-277 VAC, 60 Hz
• Tungsten (NO): 5 A, 120-277 VAC, 60 Hz
• Motor (NO): 1 HP, 120 VAC, 60 Hz 2 HP, 240 VAC, 60 Hz
• Operating Temperature Max (°C): 40
• Operating Temperature Max (F): 104
• Operating Temperature Min (°C): -40
• Operating Temperature Min (F): -40
• Enclosure Type: Outdoor Type 3R Plastic
• Product Height (in): 10
• Product Height (mm): 254
• Product Width (in): 6.5
• Product Width (mm): 165.1
• Product Depth (in): 4
• Product Depth (mm): 101.6
