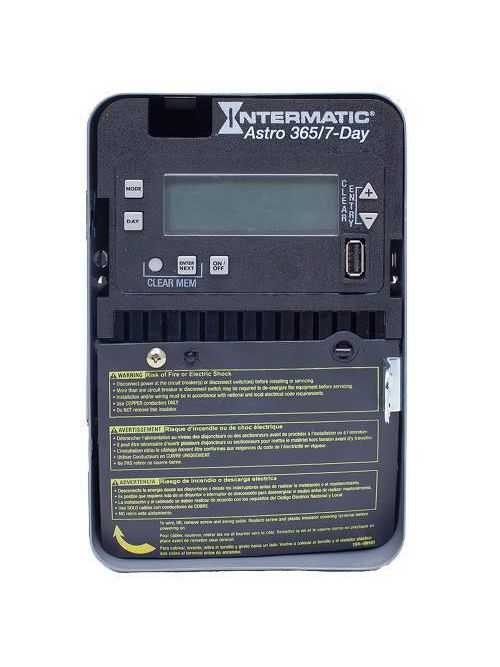

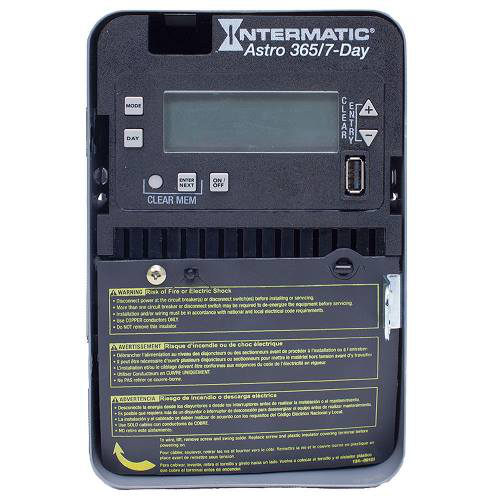

Intermatic ET2805C NEMA 1 Steel Case 7-Day 120 to 277 VAC 60 Hz 30 Amp SPST Astronomic Electronic Control
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$434.95/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # ET2805C
North Coast Part # 1349869

Features & Applications

Features

  • 100-hour supercapacitor eliminates the need for batteries
  • Up to 96 set points or events
  • Up to 50 holiday blocks with schedule capabilities
  • Automatic input voltage selection from 120 to 277 VAC, 60 Hz
  • Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
  • Configurable outputs allow the control of various voltages and applications
  • Relays incorporate zero-crossing technology to extend the life of the control
  • Non-volatile EEPROM memory protects programming indefinitely
  • LED compatible
  • USB port makes transferring and saving of schedules easy
  • 2-year limited warranty

Applications

  • Interior Lighting
  • Exterior Lighting
  • Electric Pumps
  • Electric Motor Control
  • Various Other Electrical Loads

Specifications

  • Input Voltages Display: 120-277 VAC, 60 Hz
  • Maximum ON/OFF Operations: 96
  • Maximum ON/OFF Times: Indefinite
  • Minimum ON/OFF Times: 1 min
  • Backup Protection Time: 100 Hour
  • Backup Restoration Time: 30 Minutes
  • Backup Type: Supercapacitor
  • Switch Type: SPST
  • Number of Circuits: 1
  • Operation Features: Astronomic, Holiday
  • Operation Mode: 7-day
  • Resistive (NO): 30 A, 120/240 VAC, 60 Hz
  • Inductive (NO): 30 A, 120/240 VAC, 60 Hz
  • Magnetic Ballast (NO): 20 A, 120-277 VAC, 60 Hz
  • Tungsten (NO): 5 A, 120-277 VAC, 60 Hz
  • Motor (NO): 1 HP, 120 VAC, 60 Hz 2 HP, 240 VAC, 60 Hz
  • Operating Temperature Max (°C): 40
  • Operating Temperature Max (F): 104
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Enclosure Type: Indoor Type 1 Metal
  • Product Height (in): 7.875
  • Product Height (mm): 200
  • Product Width (in): 5.125
  • Product Width (mm): 130.2
  • Product Depth (in): 3.4375
  • Product Depth (mm): 87.3

Documents & Downloads

Product Rating


Categories

Overview

UPC 07827514820
Item Long Description The ET2000 Series offers an easy-to-use user interface while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.
GTiN 00078275148208
Width 5.125 in
Operating Temperature 155 degrees F
Type Electronic
Material Steel
Applications Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
Mounting Type Wall Mount
Depth 3.4375 in
Height 7.875 in
Wire Size 18-10 AWG
Standard Meet Title 20/24 Compliance,UL Rating
Frequency 50/60 Hz
Connection Type Wire Lead
Switch Type SPST
Input Voltage 120-277 V
Temperature Rating -40 to 155 F, -40 to 68 C
Family Brand Name Intermatic
Enclosure Type NEMA 1
TC Connection Wire Lead
Contact Configuration (1) SPST - 1 NO
Amperage 30 Amp
Max Operating Temperature 104 degrees F
Min Operating Temperature -40 degrees F
Contact Rating 30 A at 120/240 VAC, 20 A at 28 VDC (Resistive), 30 A at 120/240 VAC (Inductive), 5 A at 120/240 VAC (Tungsten), 20 A at 120 - 277 VAC, 10 A at 120/277 VAC (Ballast)
Number of Poles 1 Pole
Enclosure Type 1 Steel
Action SPST
Voltage 120-277 VAC
