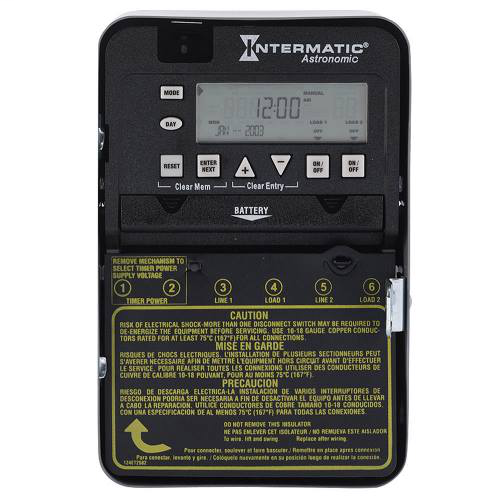

Intermatic ET8215C NEMA 1 Steel Case 7-Day 120 to 277 VAC 60 Hz 30 Amp DPST Electronic Astronomic Time Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$472.10/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # ET8215C
North Coast Part # 155737

Features & Applications

Features

  • Selector switch to determine input voltage between 120-277 VAC, 50/60 Hz
  • 14 ON/OFF events per circuit
  • To-the-minute accuracy
  • Temporary override or permanent manual override
  • Automatic Daylight Saving Time adjustment
  • Astronomic models enable dusk-to-dawn scheduling

Applications

  • Interior Lighting
  • Exterior Lighting
  • Electric Pumps
  • Electric Motor Control
  • Various Other Electrical Loads

Specifications

  • Input Voltages Display: 120, 208-277 VAC, 50/60 Hz
  • Maximum ON/OFF Operations: 28
  • Maximum ON/OFF Times: Indefinite
  • Maximum Pulse Time: 2 sec
  • Minimum ON/OFF Times: 1 min
  • Minimum Pulse Time: 2 sec
  • Backup Type: Battery
  • Switch Type: SPST
  • Number of Circuits: 2
  • Operation Features: Astronomic
  • Operation Mode: 7-day
  • Resistive: 30 A, 120/240 VAC, 50/60 Hz
  • Inductive: 30 A, 120/240 VAC, 50/60 Hz
  • Magnetic Ballast: 20 A, 120-277 VAC, 50/60 Hz
  • Tungsten: 5 A, 120-240 VAC, 50/60 Hz
  • Motor: 1 HP, 120 VAC, 50/60 Hz 2 HP, 240 VAC, 50/60 Hz
  • Operating Temperature Max (°C): 40
  • Operating Temperature Max (F): 104
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Enclosure Type: Indoor Type 1 Metal
  • Product Height (in): 7.875
  • Product Height (mm): 200
  • Product Width (in): 5.125
  • Product Width (mm): 130.2
  • Product Depth (in): 3.4375
  • Product Depth (mm): 87.3

Documents & Downloads

Product Rating


Related Accessories and Parts

  • 124ET2582: (DPST) Insulator for ET Series controls (ET1125C, ET1125CR, ET1725C, ET1725CR, ET8215C and ET8215CR)
  • ET8215CM: 7-Day Astronomic Basic Electronic Control - Mechanism Only

Overview

UPC 07827508976
Item Long Description This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, 14 ON/OFF events per circuit, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day, and 7-day astronomic (sunrise to sunset) versions.
GTiN 00078275089761
Width 5.125 in
Color Gray
Operating Temperature 155 degrees F
Type Astronomic, Electronic, 1-Pole
Material Steel
Applications Indoor, HVACR, Industrial
Mounting Type Wall Mount
Depth 3.4375 in
Height 7.875 in
Standard CCSAus Certified,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Frequency 50/60 Hz
Connection Type Teeter Type
Switch Type SPST
Input Voltage 208-277 V
Temperature Rating -40 to 155 F
Family Brand Name Intermatic
Enclosure Type NEMA 1
TC Connection Teeter Type
Contact Configuration (2) SPST - 1 NO
Amperage 30 Amp
Max Operating Temperature 104 degrees F
Min Operating Temperature -40 degrees F
Contact Rating 5 A at 120/240 VAC (Tungsten NO), 30 A at 120/240 VAC (Resistive NO), 20 A at 28 VDC (Resistive NO), 30 A at 120/240 VAC (Inductive NO), 20 A at 120 - 277 VAC (Ballast NO)
Number of Poles 1 Pole
Enclosure NEMA 1 Steel
Action SPST
Voltage 120-277 VAC
