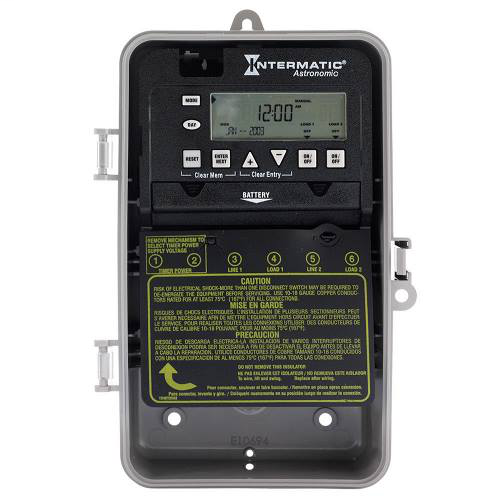

INT-MAT ET8215CPD82 7D 30A 2XSPSTOR
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$453.92/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # ET8215CPD82
North Coast Part # 547467

Features & Applications

Features

  • Selector switch to determine input voltage between 120-277 VAC, 50/60 Hz
  • 14 ON/OFF events per circuit
  • To-the-minute accuracy
  • Temporary override or permanent manual override
  • Automatic Daylight Saving Time adjustment
  • Astronomic models enable dusk-to-dawn scheduling

Applications

  • Interior Lighting
  • Exterior Lighting
  • Electric Pumps
  • Electric Motor Control
  • Various Other Electrical Loads

Specifications

  • Input Voltages Display: 120, 208-277 VAC, 50/60 Hz
  • Maximum ON/OFF Operations: 28
  • Maximum ON/OFF Times: Indefinite
  • Maximum Pulse Time: 2 sec
  • Minimum ON/OFF Times: 1 min
  • Minimum Pulse Time: 2 sec
  • Backup Type: Battery
  • Switch Type: SPST
  • Number of Circuits: 2
  • Operation Features: Astronomic
  • Operation Mode: 7-day
  • Resistive: 30 A, 120/240 VAC, 50/60 Hz
  • Inductive: 30 A, 120/240 VAC, 50/60 Hz
  • Magnetic Ballast: 20 A, 120-277 VAC, 50/60 Hz
  • Tungsten: 5 A, 120-240 VAC, 50/60 Hz
  • Motor: 1 HP, 120 VAC, 50/60 Hz 2 HP, 240 VAC, 50/60 Hz
  • Operating Temperature Max (°C): 40
  • Operating Temperature Max (F): 104
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Enclosure Type: Outdoor Type 3R Plastic
  • Product Height (in): 10
  • Product Height (mm): 254
  • Product Width (in): 6.5
  • Product Width (mm): 165.1
  • Product Depth (in): 4
  • Product Depth (mm): 101.6

Documents & Downloads

Product Rating


Related Accessories and Parts

  • ET8215CM: 7-Day Astronomic Basic Electronic Control - Mechanism Only

Categories

Overview

UPC 07827510983
GTiN 00078275109834
Width 6.5 in
Operating Temperature 155 degrees F
Type Astronomic Electronic
Applications Outdoor, HVACR, Industrial
Mounting Type Wall Mount
Depth 4 in
Height 10 in
Standard CCSAus Certified,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Frequency 50/60 Hz
Connection Type Teeter Type
Switch Type SPST
Input Voltage 208-277 V
Family Brand Name Intermatic
TC Connection Teeter Type
Contact Configuration 1 NO
Amperage 30 Amp
Max Operating Temperature 104 degrees F
Min Operating Temperature -40 degrees F
Contact Rating 30 AMP @ 120/240 VAC (Resistive NO), 20 AMP @ 28 VDC (Resistive NO), 30 AMP @ 120/240 VAC (Inductive NO), 5 AMP @ 120/240 VAC (Tungsten NO), 20 AMP @ 120 - 277 VAC (Ballast NO)
Number of Poles 1 Pole
Enclosure NEMA 3R Plastic
Action SPST
Voltage null
