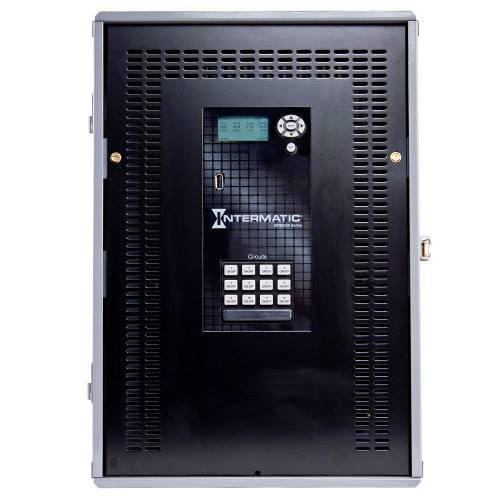

INT-MAT ET91215CR 12 CKT TIME SW/OU
Product image thumbnail 0
Product image thumbnail 1
$3,834.08/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # ET91215CR
North Coast Part # 934742

Features & Applications

Features

  • Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
  • Over 2,000 events plus holiday schedules
  • Advanced scheduling including relative dating, such as fourth Thursday of November or first week of year
  • 30 A rated contacts
  • 100-hour supercapacitor eliminates the need for batteries
  • USB connection for uploading, downloading and transferring programs
  • Easy-to-follow on-screen menus for programming to-the-minute accuracy
  • Non-volatile memory protects programming indefinitely
  • Firmware upgradable in-field via USB or Ethernet
  • Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models
  • PC App for easy scheduling or control, either remotely or through USB flash drive
  • Mobile app for real time status and overrides

Applications

  • School Districts
  • Banks
  • Small Hotels
  • Franchises
  • Retail Stores
  • Municipalities
  • Parking Lots
  • Offices

Specifications

  • Input Voltages Display: 120, 208-277 VAC, 50/60 Hz
  • Maximum ON/OFF Operations: 2000
  • Maximum ON/OFF Times: Indefinite
  • Maximum Pulse Time: 23 hours 59 minutes
  • Minimum ON/OFF Times: 1 Sec
  • Minimum Pulse Time: 1 sec
  • Backup Protection Time: 100 Hour
  • Backup Restoration Time: 30 Minutes
  • Backup Type: Supercapacitor
  • Switch Type: DPDT, SPDT
  • Number of Circuits: 12
  • Operation Features: Astronomic, Holiday
  • Operation Mode: 365-day
  • Magnetic Ballast (NC): 3 A, 120-277 VAC, 50/60 Hz
  • Magnetic Ballast (NO): 20 A, 120-277 VAC, 50/60 Hz
  • Tungsten (NO): 5 A, 12-120 VAC, 50/60 Hz
  • Pilot Duty (NC): 275 VA, 120-240 VAC, 50/60 Hz
  • Pilot Duty (NO): 470 VA, 120-240 VAC, 50/60 Hz
  • Motor (NC): 1/2 HP, 240 VAC, 50/60 Hz 1/4 HP, 120 VAC, 50/60 Hz
  • Motor (NO): 1 HP, 120 VAC, 50/60 Hz 2 HP, 240 VAC, 50/60 Hz
  • Operating Temperature Max (°C): 40
  • Operating Temperature Max (F): 104
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Enclosure Type: Outdoor Type 3R Metal
  • Product Height (in): 17.9
  • Product Height (mm): 454
  • Product Width (in): 12.7
  • Product Width (mm): 322
  • Product Depth (in): 5.4
  • Product Depth (mm): 138

Documents & Downloads

Product Rating



Related Accessories and Parts

  • ET-NF: RC Snubber Noise Filter 24-277VAC/DC for Electronic Controls
  • ET9232: Ethernet Module for ET90000 Upgrade or Replacement

Categories

Overview

UPC 07827512493
GTiN 00078275124936
Width 12.7 in
Size 17.9 HEIGHT X 12.7 WIDTH X 5.4 DEPTH IN, 454 HEIGHT X 322 WIDTH X 138 DEPTH CM
Operating Temperature 120 degrees F
Type Astronomic Electronic
Applications General Purpose, Lighting, HVACR
Mounting Type Wall Mount
Depth 5.4 in
Height 17.9 in
Standard CCSAus Certified,CULus Listed,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Frequency 50/60 Hz
Connection Type Wire Lead
Switch Type DPDT,SPDT
Input Voltage 208-277 V
Family Brand Name Intermatic
TC Connection Wire Lead
Contact Configuration 1 NO/1 NC
Amperage 20 Amp
Max Operating Temperature 104 degrees F
Min Operating Temperature -40 degrees F
Contact Rating 30 AMP @ 12 - 240 VAC (General Purpose and Resistive NO Only), 20 AMP @ 12 - 240 VAC (General Purpose and Resistive NO), 10 AMP @ 12 - 240 VAC (General Purpose and Resistive NC), 20 AMP @ 28 VDC (General Purpose and Resistive NO), 10 AMP @ 28 VDC (General Purpose and Resistive NC), 20 AMP @ 120 - 277 VAC (Ballast NO), 3 AMP @ 120 - 277 VAC (Ballast NC), 5 AMP @ 12 - 240 VAC (Tungsten NO Only)
Number of Poles 1 Pole
Enclosure Type 3R Steel
Action SPDT
Voltage null
