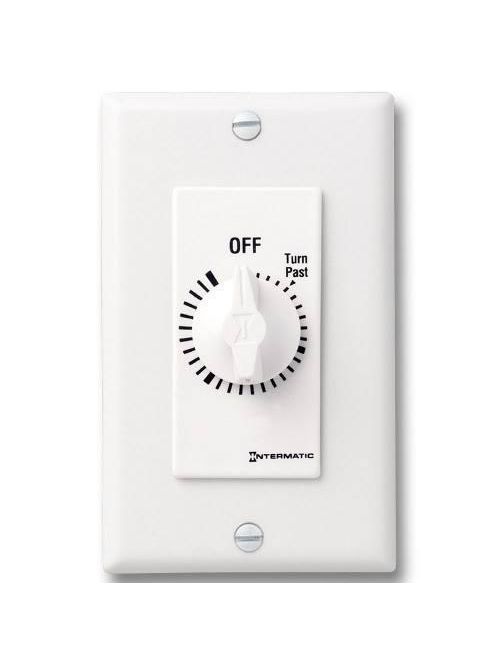

Intermatic FD2HW 2 Hour 125 to 277 VAC 60 Hz SPST White Countdown Timer
Product image thumbnail 0
Product image thumbnail 1
$51.21/ea
In Stock | 2 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # FD2HW
North Coast Part # 93139

Features & Applications

Features

  • No electricity required to operate
  • Replaces any standard or decorator single or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Models available from 5-minute to 12-hour countdown time intervals
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required

Applications

  • Bathroom Fans
  • Spas
  • Hot Tubs
  • Storage Closets
  • Garage Lights

Specifications

  • Color: White
  • Switch Type: SPST
  • Countdown Time: 2 hr
  • Hold Mode Included: No
  • Input Voltages Display: 125-277 VAC, 50/60 Hz
  • Resistive: 10 A, 250/277 VAC, 50/60 Hz 20 A, 125 VAC, 50/60 Hz
  • Incandescent Load Ratings (Multi-Gang): 7 A, 125 VAC, 50/60 Hz
  • Incandescent Load Ratings (Single-Gang): 7 A, 125 VAC, 50/60 Hz
  • Motor: 1 HP, 125 VAC, 50/60 Hz 2 HP, 250 VAC, 50/60 Hz
  • Operating Temperature Max (°C): 40
  • Operating Temperature Max (F): 104
  • Operating Temperature Min (°C): 0
  • Operating Temperature Min (F): 32
  • Product Weight (kg): 0.136
  • Product Weight (lbs): 0.299
  • Product Height (in): 4.125
  • Product Height (mm): 104.8
  • Product Width (in): 1.75
  • Product Width (mm): 44.5
  • Product Depth (in): 1.25
  • Product Depth (mm): 31.8
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Related Accessories and Parts

  • 146MT573: Knob-Wall Switch FD Series - Ivory
  • 146MT574: Knob-Wall Switch FD Series - White
  • 146MT575: Knob-Wall Switch FD Series - Almond
  • 148FD5063: Plate for 2-Hr without HOLD, White (FD2HW, FD32HW)

Categories

Overview

UPC 07827507397
GTiN 00078275073975
Warranty Length 1 yr
Width 1.75 in
Size 2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Color White
Operating Temperature 104 degrees F
Type Decorator, Spring Wound, Auto-Off, Mechanical
Applications Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Mounting Type Wall Mount
Depth 1.25 in
Height 4.125 in
Weight 0.299 lb
Standard CCSAus Certified,HVACR,UL Listed,UL Recognized
Frequency 50/60 Hz
Connection Type Teeter Type
Switch Type SPST
Input Voltage 125-277 V
Temperature Rating -40 to 104 F
Family Brand Name Intermatic
Power Source 1 hp at 120 VAC, 2 hp at 240 VAC
TC Connection Teeter Type
Contact Configuration SPST - 1 NO
Amperage 15 Amp
Max Operating Temperature 104 degrees F
Blade Dimensions 1.6 in W x 1.19 in D x 2.79 in H
Min Operating Temperature 32 degrees F
Contact Rating 7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive)
Number of Poles 1 Pole
Action SPST
Voltage 125-277 VAC
