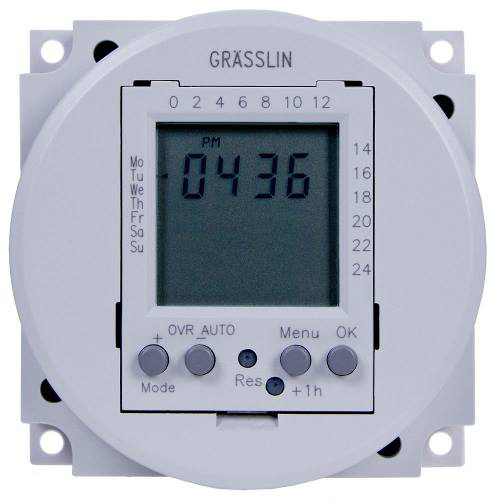

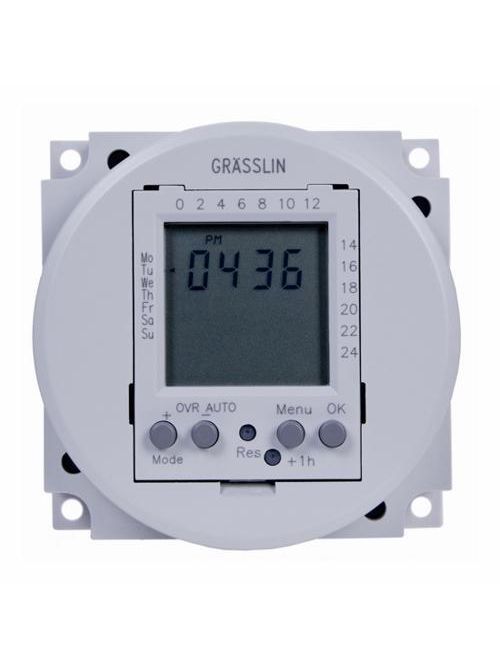

INT-MAT FM1D20-24U 24H/7D DGTL TMR,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$220.52/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # FM1D20-24U
North Coast Part # 673196

Features & Applications

Features

  • 24-Hour or 7-day applications
  • 20 Setpoint programs
  • Three preset adjustable block programs
  • Easy-to-follow menu driven programming
  • Manual override with status indication
  • Battery backup
  • Large LCD
  • Daylight Saving Time adjustment
  • A & E models come with clear dust cover

Applications

  • Generator Exercising
  • Scheduling Occupied/Unoccupied Ventilation System Operation
  • Parts Washer
  • Commercial Refrigeration
  • Pump Control
  • Motor Control
  • Fan Control
  • HVAC Control Circuits
  • Lighting Control
  • Landscape Lighting
  • Security Gates

Specifications

  • Maximum ON/OFF Operations: 0
  • Minimum ON/OFF Times: 1 min
  • Backup Protection Time: 7 Years
  • Backup Type: Battery
  • Switch Type: SPDT
  • Number of Circuits: 1
  • Operation Mode: 24-hour, 7-day
  • Mounting Options: Panel
  • Resistive (NC): 16 A, 277 VAC, 50/60 Hz
  • Resistive (NO): 16 A, 277 VAC, 50/60 Hz
  • Tungsten (NO): 1000 W, 240 VAC, 50/60 Hz 600 W, 120 VAC, 50/60 Hz
  • Pilot Duty (NC): 360 VA, 120 VAC, 50/60 Hz
  • Pilot Duty (NO): 360 VA, 120 VAC, 50/60 Hz 720 VA, 240 VAC, 50/60 Hz
  • Motor (NO): 1 HP, 240 VAC, 50/60 Hz 1/2 HP, 120 VAC, 50/60 Hz
  • Operating Temperature Max (°C): 55
  • Operating Temperature Max (F): 131
  • Operating Temperature Min (°C): -25
  • Operating Temperature Min (F): -13
  • Product Height (in): 2.37
  • Product Height (mm): 60.1
  • Product Width (in): 2.37
  • Product Width (mm): 60.1
  • Product Depth (in): 2.06
  • Product Depth (mm): 52

Documents & Downloads

Product Rating




Overview

UPC 07827511638
Item Long Description The FM1D20 Series Electronic Time Controls are for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. They are intended for either panel, surface, flush, or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.
GTiN 00078275116382
Width 2.37 in
Size 2.36 HEIGHT X 2.36 WIDTH IN, 60 HEIGHT X 60 WIDTH MM
Operating Temperature 131 degrees F
Type One Channel Electronic
Applications Lighting, HVACR, Commercial, Industrial, Machinery, Pumps, Fans, HVAC
Mounting Type Panel Mount
Depth 2.06 in
Height 2.37 in
Standard CULus Recognized E10694,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Frequency 50/60 Hz
Connection Type 1/4 In Quick Connect
Wattage 1000 Watt
Switch Type SPDT
Family Brand Name Intermatic
TC Connection 1/4 IN Quick Connect
Contact Configuration 1 NO/1 NC
Power Consumption 4 VA
Max Operating Temperature 131 degrees F
Min Operating Temperature -13 degrees F
Contact Rating 16 AMP @ 277 VAC (Resistive NO), 12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Number of Poles 1 Pole
Action SPDT
Sub Brand Grasslin
Voltage 24 VAC//VDC
