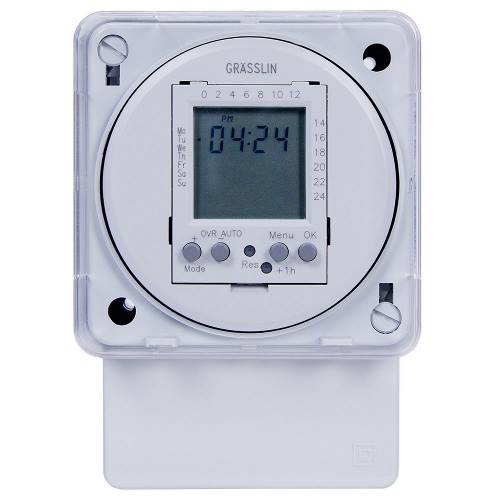

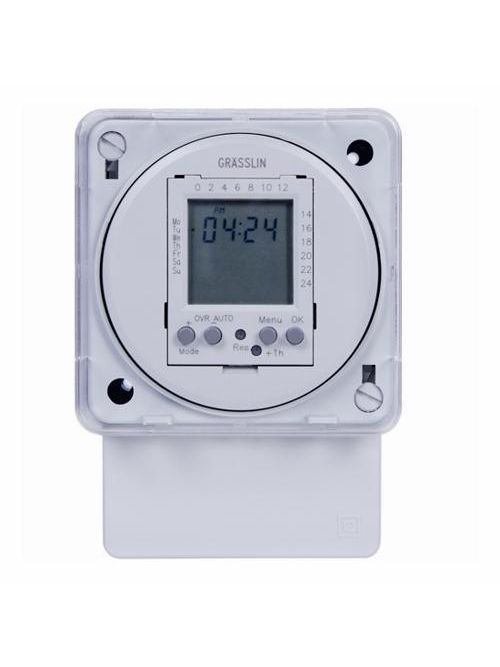

INT-MAT FM1D20A-24 DGTL TMR,20 PRGM
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$259.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # FM1D20A-24
North Coast Part # 488504

Features & Applications

Features

  • 24-Hour or 7-day applications
  • 20 Setpoint programs
  • Three preset adjustable block programs
  • Easy-to-follow menu driven programming
  • Manual override with status indication
  • Battery backup
  • Large LCD
  • Daylight Saving Time adjustment
  • A & E models come with clear dust cover

Applications

  • Generator Exercising
  • Scheduling Occupied/Unoccupied Ventilation System Operation
  • Parts Washer
  • Commercial Refrigeration
  • Pump Control
  • Motor Control
  • Fan Control
  • HVAC Control Circuits
  • Lighting Control
  • Landscape Lighting
  • Security Gates

Specifications

  • Maximum ON/OFF Operations: 0
  • Minimum ON/OFF Times: 1 min
  • Backup Protection Time: 7 Years
  • Backup Type: Battery
  • Switch Type: SPDT
  • Number of Circuits: 1
  • Operation Mode: 24-hour, 7-day
  • Mounting Options: DIN Rail, Surface
  • Resistive (NC): 16 A, 277 VAC, 50/60 Hz
  • Resistive (NO): 16 A, 277 VAC, 50/60 Hz
  • Tungsten (NO): 1000 W, 240 VAC, 50/60 Hz 600 W, 120 VAC, 50/60 Hz
  • Pilot Duty (NC): 360 VA, 120 VAC, 50/60 Hz
  • Pilot Duty (NO): 360 VA, 120 VAC, 50/60 Hz 720 VA, 240 VAC, 50/60 Hz
  • Motor (NO): 1 HP, 240 VAC, 50/60 Hz 1/2 HP, 120 VAC, 50/60 Hz
  • Operating Temperature Max (°C): 55
  • Operating Temperature Max (F): 131
  • Operating Temperature Min (°C): -25
  • Operating Temperature Min (F): -13
  • Product Height (in): 4
  • Product Height (mm): 102.5
  • Product Width (in): 2.83
  • Product Width (mm): 72
  • Product Depth (in): 2.06
  • Product Depth (mm): 52

Documents & Downloads

Product Rating




Overview

UPC 07827512166
GTiN 00078275121669
Width 2.83 in
Size 4 HEIGHT X 2.83 WIDTH X 2.06 DEPTH IN, 102.5 HEIGHT X 72 WIDTH X 52 DEPTH MM
Operating Temperature 131 degrees F
Type Electronic, 1-Pole, 1-Channel
Applications Lighting, HVACR, Commercial, Industrial, Machinery, Pumps, Fans, HVAC
Mounting Type Surface/DIN Rail Mount
Depth 2.06 in
Height 4 in
Standard HVACR,California TITLE 24 Compliant,Title CA 20 Listed,CULus Recognized E10694
Frequency 50/60 Hz
Connection Type Screw Terminal
Wattage 1000 Watt
Switch Type SPDT
Temperature Rating -13 to 131 F
Family Brand Name Intermatic
TC Connection Screw Terminal
Contact Configuration SPDT - 1 NO/1 NC
Power Consumption 4 VA
Max Operating Temperature 131 degrees F
Blade Dimensions 2.83 in W x 2.06 in D x 4 in H
Min Operating Temperature -13 degrees F
Contact Rating 16 A at 277 VAC (Resistive NO/NC), 12 A at 120 VAC (Ballast NO), 8 A at 240 VAC (Ballast NO/NC), 8 A at 24 VDC (NC), 1000 W, 720 VA at 240 VAC (NO), 360 VA at 120 VAC (NO), 360 VA at 120 VAC (NC)
Number of Poles 1 Pole
Action SPDT
Sub Brand Grasslin
Voltage null
