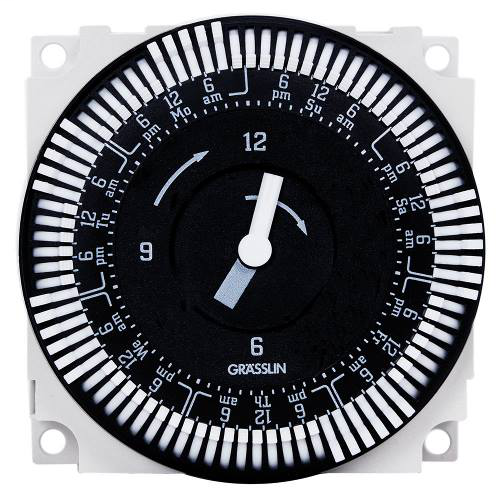

INT-MAT FM1SWUZ-120U 7D ELECTROMECH
$121.11/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # FM1SWUZ-120U
North Coast Part # 674001

Features & Applications

Features

  • 21 A SPDT Switch
  • Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
  • 7-Day carry-over battery backup on Q models
  • Noise immune – ideal for robust applications
  • Synchronous drive or quartz drive Q models with self-recharging battery backup
  • True clock face, easy-to-set
  • Available with or without override
  • Compact size
  • Clear plastic cover (DC-FME-A), sold separately below
  • Standalone or with indoor/outdoor enclosure, sold separately below

Applications

  • Commercial Refrigeration
  • Pool & Spa
  • Ventilation
  • Hot Water Pump Circulation
  • Hydroponic Systems
  • Lighting Panel Control
  • Landscape Lighting
  • Bug and Pest Control Systems
  • Aerobic Waste Water Systems

Specifications

  • Maximum ON/OFF Operations: 0
  • Mounting Options: Panel
  • Has Override Switch: No
  • Motor: 120/250 VAC, 1/2 HP
  • Operating Temperature Max (°C): 85
  • Operating Temperature Max (F): 185
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Product Height (in): 2 23/64
  • Product Height (mm): 60
  • Product Width (in): 2 23/64
  • Product Width (mm): 60
  • Product Depth (in): 1 1/4
  • Product Depth (mm): 32
  • Warranty: 1-year limited

Documents & Downloads

Product Rating



Related Accessories and Parts

  • E150: Case-Indoor, Type 1 Plastic, Gray
  • E200: Case-Outdoor, Type 3R Plastic, Gray
  • DC-FME-A: Clear Dust Cover for Electronic Panel Mount Timers
  • FM-FU: FM1 Flush Mount Housing Kit
  • FM-SU: FM1 Surface/DIN Rail Kit

Categories

Overview

UPC 61457312201
GTiN 00614573122016
Warranty Length 1 yr
Width 2 23/64 in
Size 2.36 HEIGHT X 2.36 WIDTH X 1.25 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM
Operating Temperature 185 degrees F
Voltage 120 Volt
Type Synchronous Electromechanical
Applications HVACR, Lighting, Security, Circulating Pumps, Spas, OEM Applications
Mounting Type Panel Mount
Depth 1 1/4 in
Height 2 23/64 in
Standard CCSAus Certified LR3730,CE Certified,CULus Recognized #10694,HVACR
Frequency 50/60 Hz
Connection Type 1/4 In Quick Connect
Wattage 1,350 Watt
Family Brand Name Intermatic
TC Connection 1/4 IN Quick Connect
Contact Configuration 1 NO/1 NC
Power Consumption 1 VA
Max Operating Temperature 185 degrees F
Min Operating Temperature -40 degrees F
Contact Rating 21 AMP @ 120 - 250 VAC
Number of Poles 1 Pole
Action SPDT
Sub Brand Grasslin
