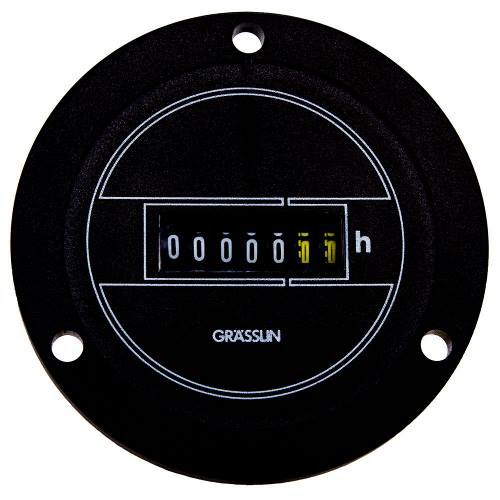

INT-MAT FWZ72-120U 120V 60Hz 1VA FL
$78.77/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # FWZ72-120U
North Coast Part # 490846

Features & Applications

Applications

  • Industrial Control Panels
  • Pumps
  • Machinery
  • Heaters

Specifications

  • Input Voltages Display: 120 VAC, 60 Hz
  • Maximum Power Consumption (VA): 1
  • Bezel Diameter (in): 2.83
  • Bezel Diameter (mm): 72
  • Bezel Height (mm): 0
  • Bezel Width (mm): 0
  • Capacity (Hours): 99999.99
  • Digits Height (in): 0.16
  • Digits Height (mm): 4.1
  • Operating Temperature Max (°C): 72
  • Operating Temperature Max (F): 160
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Panel Opening Diameter (in): 1.75
  • Panel Opening Diameter (mm): 44.4
  • Panel Opening Height (in): 1
  • Panel Opening Height (mm): 24
  • Panel Opening Width (in): 1.5
  • Panel Opening Width (mm): 38
  • Mounting Depth (in): 2.386
  • Mounting Depth (mm): 60.6
  • Mounting Description: Flush panel retainer mounted (3) 0.185" holes for #8 screws
  • Mounting Options: Flush, Panel
  • Environmental Rating: IP54 (With Use of Gasket)
  • Hour Meter Material: Plastic
  • Model Number: FWZ72-120U
  • Ordering Instructions: FWZ72+120+U

Documents & Downloads

Product Rating




Related Accessories and Parts

  • G-72U: Gasket for FWZ72 Series Hour Meters

Overview

UPC 61457327010
GTiN 00614573270106
Voltage 120 Volt
Type Non-Resettable, AC Hour Meter
Mounting Type Flush-Panel Mount
Weight 1.8 OZ
Standard CE,CSA,UL Recognized
Capacity 99999.99 HR
Frequency 60 Hz
Input Voltage 120 V
Temperature Rating 160 degrees F
Family Brand Name Intermatic
Power Consumption 1 VA
Max Operating Temperature 160 degrees F
Min Operating Temperature -40 degrees F
IP Rating IP54
Display Type Analog, Digital
