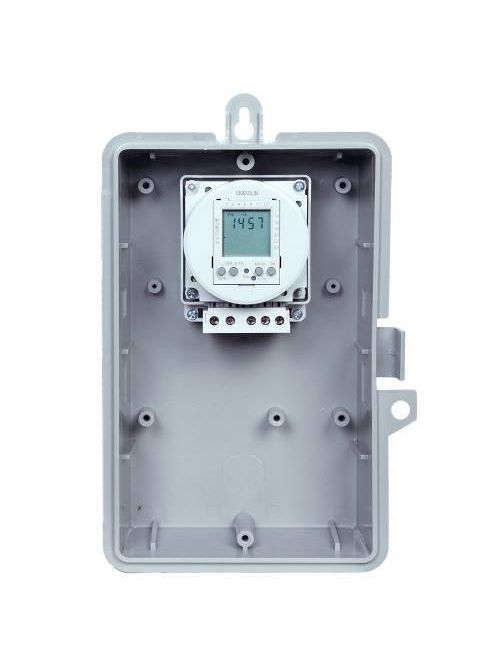

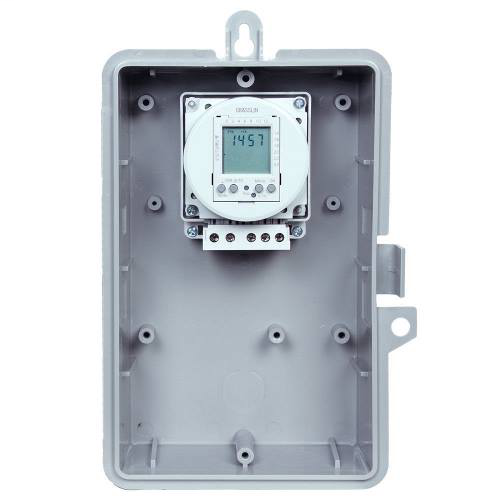

INT-MAT GMXFM1D20-O-120 DGTL TMR,20
Product image thumbnail 0
Product image thumbnail 1
$289.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # GMXFM1D20-O-120
North Coast Part # 677693

Features & Applications

Features

  • 21 A SPDT Switch
  • UL Type 1 indoor or Type 3R outdoor plastic enclosure
  • Manual 3-way override
  • Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
  • True clock face, easy-to-set
  • Finger-safe terminals
  • Enclosure provides space for field-added contactor or other accessories
  • Synchronous drive or quartz drive ("Q" models) with self-charging battery backup

Applications

  • Lighting Control
  • Access Control
  • Commercial Refrigeration
  • General Electrical Circuits
  • Pump Control
  • Motor Control
  • Fan Control

Specifications

  • Input Voltages Display: 120 VAC, 50/60 Hz
  • Maximum ON/OFF Operations: 0
  • Maximum ON/OFF Times: 23 hours, 59 minutes
  • Minimum ON/OFF Times: 1 min
  • Backup Protection Time: 7 Years
  • Backup Type: Battery
  • Switch Type: SPDT
  • Number of Circuits: 1
  • Operation Mode: 24-hour, 7-day
  • Resistive (NC): 16 A, 277 VAC, 50/60 Hz
  • Resistive (NO): 16 A, 277 VAC, 50/60 Hz
  • Tungsten (NO): 1000 W, 240 VAC, 50/60 Hz 600 W, 120 VAC, 50/60 Hz
  • Pilot Duty (NC): 360 VA, 120 VAC, 50/60 Hz
  • Pilot Duty (NO): 360 VA, 120 VAC, 50/60 Hz 720 VA, 240 VAC, 50/60 Hz
  • Motor (NO): 1 HP, 240 VAC, 50/60 Hz 1/2 HP, 120 VAC, 50/60 Hz
  • Operating Temperature Max (°C): 55
  • Operating Temperature Max (F): 131
  • Operating Temperature Min (°C): -25
  • Operating Temperature Min (F): -13
  • Enclosure Type: Outdoor Type 3R Plastic
  • Product Height (in): 10
  • Product Height (mm): 254
  • Product Width (in): 6.5
  • Product Width (mm): 165.1
  • Product Depth (in): 3.74
  • Product Depth (mm): 25.4

Documents & Downloads

Product Rating



Overview

UPC 07827511678
GTiN 00078275116788
Width 6.5 in
Size 10 HEIGHT X 6.50 WIDTH X 3.75 DEPTH IN, 25.4 HEIGHT X 16.5 WIDTH X 9.5 DEPTH CM
Operating Temperature 131 degrees F
Voltage 120 Volt
Type One Channel Electronic
Applications Outdoor, Pumps, Fans, HVACR, Control Circuits, Lighting, Machinery, Commercial, Industrial, Agricultural
Mounting Type Wall Mount
Depth 3.74 in
Height 10 in
Standard CULus Listed #E10694,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Frequency 50/60 Hz
Connection Type Screw Terminal
Wattage 1000 Watt
Switch Type SPDT
Input Voltage 120 V
Family Brand Name Intermatic
NEMA 3R
TC Connection Screw Terminal
Contact Configuration 1 NO/1 NC
Power Consumption 4 VA
Max Operating Temperature 131 degrees F
Min Operating Temperature -13 degrees F
Contact Rating 16 AMP @ 277 VAC (Resistive NO), 12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Number of Poles 1 Pole
Enclosure NEMA 3R
Action SPDT
