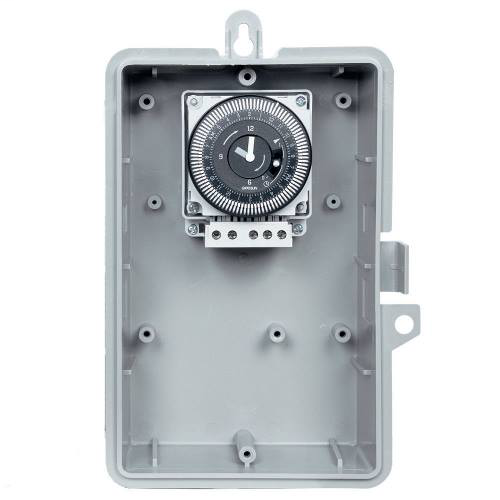

Manufacturer | Intermatic |
---|---|
Mfg Catalog # | GMXST-O-24 |
North Coast Part # | 1276875 |
UPC | 61457301323 |
GTiN | 00614573013239 |
Warranty Length | 1 yr |
Width | 165 mm |
Size | 10 HEIGHT X 6.50 WIDTH X 3.75 DEPTH IN, 25.4 HEIGHT X 16.5 WIDTH X 9.5 DEPTH CM |
Operating Temperature | 185 degrees F |
Type | Electromechanical Time Control |
Applications | Commercial, Outdoor, Lighting, HVACR, Pumps, Motors, Fans, Agricultural, General Electrical Circuit |
Mounting Type | Wall Mount |
Depth | 3 3/4 in |
Height | 10 in |
Standard | CCSAus Certified,CULus Listed #E10694,HVACR |
Frequency | 60 Hz |
Connection Type | Screw Terminal |
Wattage | 1,350 Watt |
Input Voltage | 24 V |
Family Brand Name | Intermatic |
NEMA | 3R |
Enclosure Rating | 0 - 95 RH Non-Condensing |
TC Connection | Screw Terminal |
Contact Configuration | 1 NO/1 NC |
Max Operating Temperature | 185 degrees F |
Min Operating Temperature | -40 degrees F |
Max Wire Size | 12 AWG |
Contact Rating | 21 AMP @ 250 VAC (Resistive) |
Number of Poles | 1 Pole |
Enclosure | NEMA 3R |
Action | SPDT |
Sub Brand | Grasslin |
Voltage | null |
