Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # GZ40BU
North Coast Part # 754795

Features & Applications


  • Industrial Control Panels
  • Pumps
  • Machinery
  • Heaters


  • Input Voltages Display: 10-80 VDC
  • Maximum Power Consumption (VA): 0
  • Maximum Power Consumption (W): .03 W, 12 VDC, .7 W, 48 VDC
  • Bezel Diameter (in): 2.8
  • Bezel Diameter (mm): 72
  • Bezel Height (mm): 0
  • Bezel Width (mm): 0
  • Capacity (Hours): 99999.9
  • Digits Height (in): 0.125
  • Digits Height (mm): 3.2
  • Operating Temperature Max (°C): 65
  • Operating Temperature Max (F): 150
  • Operating Temperature Min (°C): -30
  • Operating Temperature Min (F): -22
  • Panel Opening Diameter (mm): 0
  • Panel Opening Height (in): 1.7
  • Panel Opening Height (mm): 0
  • Panel Opening Width (in): 1.54
  • Panel Opening Width (mm): 0
  • Mounting Depth (in): 1.74
  • Mounting Depth (mm): 44.2
  • Mounting Options: Flush
  • Power Meter Protection: Reverse Polarity, Inductive Switching
  • Environmental Rating: IP66
  • Product Weight (lbs): 0.125
  • Model Number: GZ40BU
  • Ordering Instructions: GZ40BU

Product Rating


UPC 61457331120

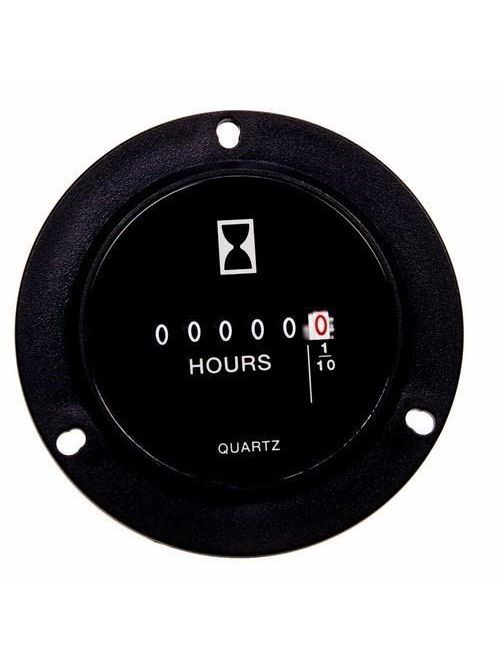

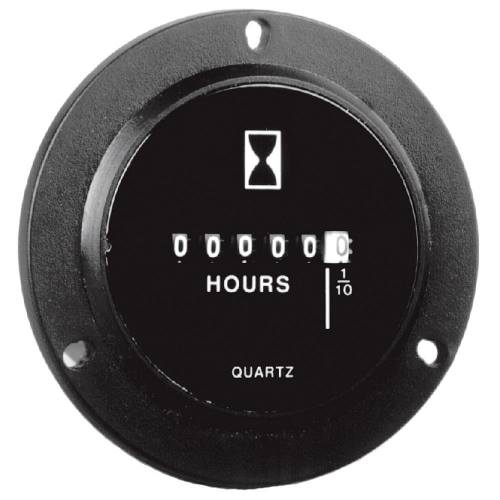

Item Long Description The Grsslin GZ Series DC Hour Meters are the answer to applications requiring low power load usage metering. Compact, tamperproof GZ40 meters are sealed against the environment (IP rated up to IP66) to provide years of service. Accumulated load usage hours are stored in the mechanical indicating counter; therefore, no battery is required to maintain elapsed time. An input diode provides polarity protection. A quartz crystal time base ensures accurate, long-term timekeeping.
GTiN 00614573311205
Type Non-Resettable, DC Hour Meter
Applications DC Voltage
Mounting Type Surface
Weight 0.125 lb
Standard CCSAus,UL Recognized
Capacity 99999.9 HR
Wattage 0.03/0.7 Watt
Input Voltage 10-80 V
Temperature Rating 150 degrees F
Family Brand Name Intermatic
Max Operating Temperature 150 degrees F
Min Operating Temperature -22 degrees F
IP Rating IP66
Accuracy 0.04 S/HR
Enclosure Dustproof,Splashproof
Voltage 10-80 VDC
