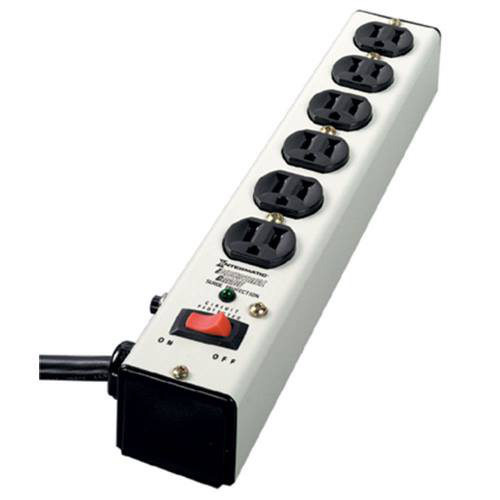

Intermatic IG112663 6 Foot Cord 6 Outlet White Surge Protective Device
$104.68/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # IG112663
North Coast Part # 13697

Features & Applications

Features

  • Three Modes of protection
  • Metal Oxide Varistor (MOV) surge protection technology
  • 15 A resettable breaker
  • #14 AWG SJT power cord with molded plug
  • Six foot cord length with six outlets
  • LED protection indicator
  • Extruded aluminum housing
  • White
  • Illuminating ON/OFF Switch
  • 5-year product warranty
  • $10,000 connected equipment warranty on appliances and electronics
  • CSA certified to ANSI/UL 1449 3rd edition

Applications

  • Commercial
  • Industrial

Specifications

  • Input Voltages Display: 125 VAC, 60 Hz
  • Surge Protection Type: Type 3
  • Surge Protection: MOV
  • Maximum Continuous Operating Voltage (L-G): 130
  • Maximum Continuous Operating Voltage (L-N): 130
  • Maximum Continuous Operating Voltage (N-G): 130
  • Voltage Protection Rating (L-G): 600
  • Voltage Protection Rating (L-N): 700
  • Voltage Protection Rating (N-G): 600
  • Cord Length (ft): 6
  • Cord Length (m): 1.828
  • Number of Outlets: 6
  • Operating Temperature Max (°C): 40
  • Operating Temperature Max (F): 104
  • Operating Temperature Min (°C): -20
  • Operating Temperature Min (F): -4
  • Product Height (in): 1 7/8
  • Product Height (mm): 47.6
  • Product Width (in): 1 7/8
  • Product Width (mm): 47.6
  • Product Depth (in): 12 1/2
  • Product Depth (mm): 317.5
  • Warranty: 5-year limited

Documents & Downloads

Product Rating

Related Accessories and Parts

  • 24EG5133: Mounting Bracket Plate for Type 3 SPD Surge Strips

Overview

UPC 07827512454
GTiN 00078275124547
Warranty Length 5 yr
Width 1 7/8 in
Color Ivory
Voltage 125 Volt
Type Surge Protective Device
Material Metal
Applications Heavy-Duty Industrial
Mounting Type Surface With Brackets
Depth 12 1/2 in
Height 1 7/8 in
Frequency 50/60 Hz
Input Voltage 125 V
Family Brand Name Intermatic
Number of Phases 1 Phase
Amperage 15 Amp
Cord Length 6 FT
Max Operating Temperature 104 degrees F
Min Operating Temperature -4 degrees F

Substitutes (1)
