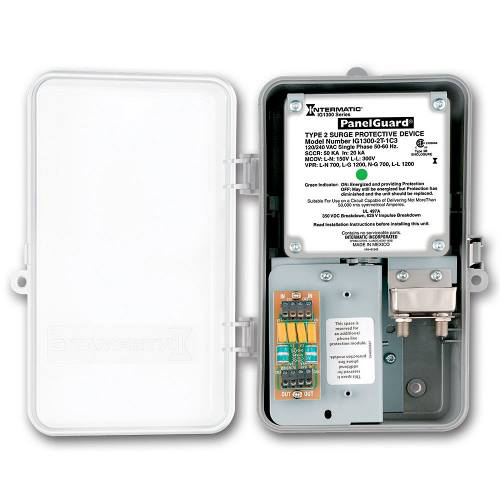

INT-MAT IG1300-2T-1C3 120/240 SPD W
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # IG1300-2T-1C3
North Coast Part # 883181

Features & Applications


  • Six modes of protection for AC SPD
  • TPMOV surge protection technology for AC SPD
  • Green LED indicator provides status of protection
  • Provides protection for two telephone lines (analog phone line, modem, or DSL) and one coax line (cable TV, cable Internet, or Satellite TV)
  • Type 3R plastic rainproof enclosure for indoor/outdoor installations
  • 5-year product warranty
  • $10,000 connected equipment warranty on appliances and electronics
  • CSA certified to ANSI/UL 1449 3rd edition
  • UL 497A is for telephone protection
  • UL 497B is for coax protection


  • Residential
  • Light Commercial


  • Input Voltages Display: 120/240 VAC, 50/60 Hz
  • Modes of Protection: 6
  • Surge Protection Type: Type 2
  • Surge Protection: TPMOV
  • Maximum Continuous Operating Voltage (L-G): 300
  • Maximum Continuous Operating Voltage (L-L): 300
  • Maximum Continuous Operating Voltage (L-N): 150
  • Maximum Continuous Operating Voltage (N-G): 150
  • Nominal Discharge Current: 20 kA
  • Short Circuit Current Rating: 50 kA
  • Voltage Protection Rating (L-G): 1200
  • Voltage Protection Rating (L-L): 1200
  • Voltage Protection Rating (L-N): 700
  • Voltage Protection Rating (N-G): 700
  • Number of Coax Lines Protected: 1
  • Number of Telephone Lines Protected: 2
  • Enclosure Type: Outdoor Type 3R Plastic
  • Operating Temperature Max (°C): 85
  • Operating Temperature Max (F): 185
  • Operating Temperature Min (°C): -35
  • Operating Temperature Min (F): -31
  • Wire Lead Length (in): 24
  • Wire Lead Length (mm): 0
  • Warranty: 5-year

Documents & Downloads

Product Rating

Related Accessories and Parts

  • IG2T: Spare Telephone/Modem/DSL Internet Protection Module


UPC 07827512438
Item Long Description The IG1300 Series provides protection for telephone and coax lines in addition to AC Power. Trusted, state-of-the-art TPMOV (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. The IG1300 Series Surge Protective Devices are designed for Type 2 applications for installations after service entrances. CSA certified to ANSI/UL 1449, 3rd edition, UL 497A for phone line, and UL 497B for coax cable.
GTiN 00078275124387
Warranty Length 5 yr
Size 9.38 HEIGHT X 5.25 WIDTH X 4.0 DEPTH IN, 238 HEIGHT X 133 WIDTH X 101 DEPTH MM
Type Type I or II
Material PolyCarbonate
Applications For Residential, Light Commercial
Mounting Type Wall Mount
Standard ANSI/UL1449 3rd Edition,CSA
Input Voltage 120/240 V
Family Brand Name Intermatic
Number of Phases 2 Phase
Wire Length 0 mm
Max Operating Temperature 185 degrees F
Min Operating Temperature -31 degrees F
Voltage 120/240 VAC
Housing Material Polycarbonate
Blade Dimensions 5-1/4 in W x 4 in D x 9.38 in H
Nominal Discharge Current 20 kA
