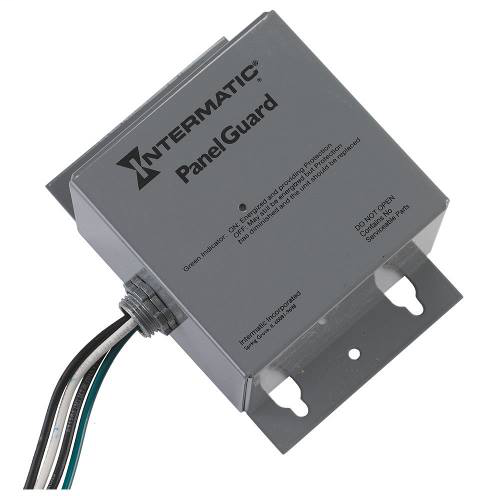

Intermatic IG3240RC3 NEMA 3R Plastic Housing 120/240 VAC 1-Phase Surge Protective Device
$333.39/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # IG3240RC3
North Coast Part # 676373

Features & Applications

Features

  • Six modes of surge protection
  • TPMOV surge protection technology
  • Green LED indicator provides status of protection
  • Type 3R rainproof enclosure for indoor/outdoor applications in metal
  • 10-year product warranty
  • $25,000 connected equipment warranty on appliances and electronics
  • CSA certified to ANSI/UL 1449 3rd edition

Applications

  • Residential
  • Light Commercial

Specifications

  • Input Voltages Display: 120/240 VAC, 50/60 Hz
  • Modes of Protection: 6
  • Surge Protection Type: Type 1, Type 2
  • Nominal Discharge Current: 20 kA
  • Short Circuit Current Rating: 50 kA
  • Surge Protection: TPMOV
  • Wiring Option: Wire Leads
  • Enclosure Type: Outdoor Type 3R Metal
  • Maximum Continuous Operating Voltage (L-G): 300
  • Maximum Continuous Operating Voltage (L-L): 300
  • Maximum Continuous Operating Voltage (L-N): 150
  • Maximum Continuous Operating Voltage (N-G): 150
  • Voltage Protection Rating (L-G): 1200
  • Voltage Protection Rating (L-L): 1200
  • Voltage Protection Rating (L-N): 700
  • Voltage Protection Rating (N-G): 700
  • Operating Temperature Max (°C): 85
  • Operating Temperature Max (F): 185
  • Operating Temperature Min (°C): -35
  • Operating Temperature Min (F): -31
  • Number of Wire Leads: 4
  • Wire Lead Length (in): 30
  • Wire Lead Length (mm): 762
  • Product Height (in): 4 3/16
  • Product Height (mm): 106.4
  • Product Width (in): 4 3/16
  • Product Width (mm): 106.4
  • Product Depth (in): 3 7/16
  • Product Depth (mm): 87.3
  • Warranty: 10-year
  • Connect Equipment Warranty Period: 10-year
  • Connected Equipment Warranty Coverage (USD): 25000

Documents & Downloads

Product Rating



Related Accessories and Parts

  • IG3240FMP33: Flush Mount Kit for IG3240RC3

Overview

UPC 07827512440
GTiN 00078275124400
Warranty Length 10 yr
Width 4 3/16 in
Size 6.28 HEIGHT X 4.40 WIDTH X 3.71 DEPTH IN, 159 HEIGHT X 111 WIDTH X 94 DEPTH MM
Type Type I or II
Material Metal
Applications Residential, Light Commercial
Mounting Type Wall
Depth 3 7/16 in
Height 106.4 mm
Standard CSA,ANSI/UL1449 3rd Edition
Input Voltage 120/240 V
Family Brand Name Intermatic
Number of Phases 2
Wire Length 762 mm
Max Operating Temperature 185 degrees F
Min Operating Temperature -31 degrees F
Blade Dimensions 4.4 in W x 3.71 in D x 6.28 in H
Nominal Discharge Current 20 kA
