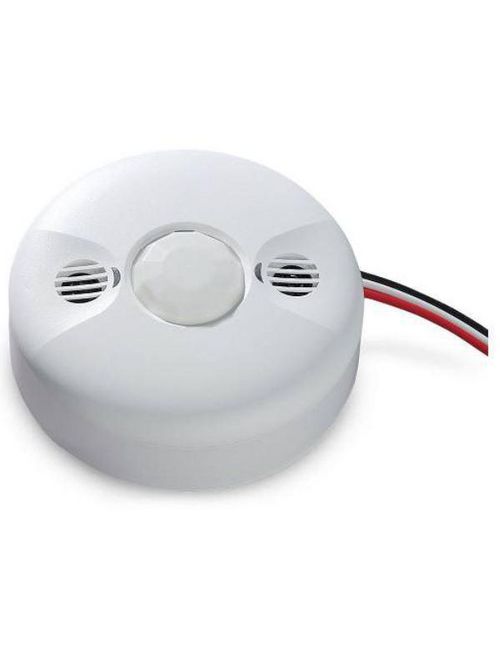

INT-MAT IOS-CMP-DT-U OCC SENS CEILI
$144.65/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # IOS-CMP-DT-U
North Coast Part # 1343959

Features & Applications

Features

  • Ultrasonic and PIR sensing improves presence detection while avoiding false triggers, even in areas with partitions and/or small movements
  • Zero-crossing technology for long life and performance
  • Coverage: 360°, 1600 ft2 PIR, 1000 ft2 Ultrasonic mounted on 8 to 11 ft ceiling
  • Adjustable ambient light sensor override
  • Requires neutral connection

Applications

  • Partitioned Restroom
  • Office Space w/Cubicles
  • Storage Rooms
  • Libraries
  • Waiting Rooms

Specifications

  • Occupancy Sensor Power Type: Line Voltage
  • Sensor Technology: Dual Technology (PIR/Ultrasonic)
  • Mount Type: Ceiling
  • Neutral Connection Required: No
  • Sensor Switch Type: Occupancy
  • Color: White
  • Number of Circuits: 0
  • Input Voltages Display: 120/277 VAC, 50/60 Hz
  • Electronic Ballast: 5 A, 120/277 VAC, 50/60 Hz
  • Incandescent Load Ratings: 800 W, 120 VAC, 50/60 Hz
  • Motor: 1/4 HP, 120 VAC, 50/60 Hz
  • Maximum Current Consumption (mA): 0
  • PIR Coverage Pattern (degrees): 360
  • Adjustable Light Level Max: Daylight
  • Adjustable Light Level Min: 10 fc
  • Operating Temperature Max (°C): 50
  • Operating Temperature Max (F): 122
  • Operating Temperature Min (°C): 0
  • Operating Temperature Min (F): 32
  • Product Weight (kg): 0.227
  • Product Weight (lbs): 0.5
  • Product Height (in): 1 3/8
  • Product Height (mm): 35
  • Product Diameter (in): 4 9/16
  • Product Diameter (mm): 116
  • Warranty: 2-year limited

Documents & Downloads

Product Rating


Overview

UPC 07827514838
GTiN 00078275148383
Warranty Length 2 yr
Color White
Operating Temperature 32 - 122 Deg F
Type OccupancySensor
Applications partitionedrestroom;officespacewithcubicles;storagerooms;libraries;waitingrooms
Mounting Type Ceiling
Height 35 mm
Weight 0.5 lb
Input Voltage 120/277 V
Family Brand Name Intermatic
Max Operating Temperature 122 degrees F
Min Operating Temperature 32 degrees F
Sensing Range 360, 1600 ft2 PIR, 1000 ft2 Ultrasonic
Indicator zero-crossing technology
