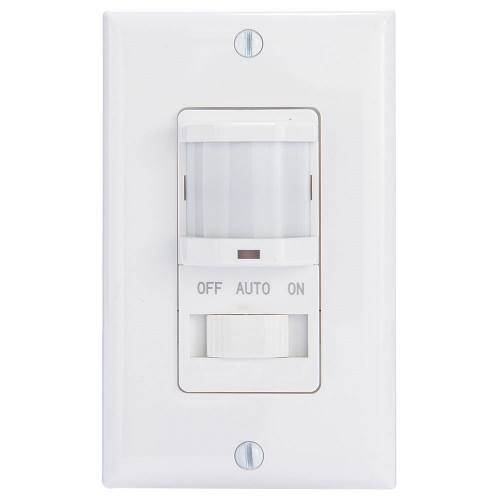

INT-MAT IOS-DSIF-WH SLD ON/OFF BTN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$31.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # IOS-DSIF-WH
North Coast Part # 885841

Features & Applications

Features

  • Passive Infrared (PIR) sensing for presence detection
  • Adjustable PIR sensitivity
  • Adjustable time delay 15 sec to 30 min
  • Adjustable ambient light sensor override
  • Coverage: 150º, 980 ft2 with non-obstructed views
  • IOS-DSIF models are Incandescent/Fluorescent/CFL/LED compatible and require a neutral connection
  • No neutral' models offered for retrofit applications
  • Fits standard decorator wall plate (included)

Applications

  • Laundry Room
  • Closets
  • Kitchen
  • Home Office
  • Bathrooms

Specifications

  • Occupancy Sensor Power Type: Line Voltage
  • Sensor Technology: PIR (Passive Infrared)
  • Mount Type: In-Wall
  • Neutral Connection Required: No
  • Sensor Switch Type: Occupancy
  • Color: White
  • Number of Circuits: 0
  • Input Voltages Display: 120 VAC, 60 Hz
  • Resistive: 500 W, 120 VAC, 60 Hz
  • Inductive: 500 VA, 120 VAC, 60 Hz
  • Incandescent Load Ratings: 500 W, 120 VAC, 60 Hz
  • Motor: 1/8 HP, 120 VAC, 60 Hz
  • Maximum Current Consumption (mA): 0
  • PIR Coverage Pattern (degrees): 150
  • Adjustable Light Level Max: Daylight
  • Adjustable Light Level Min: 30 lux
  • Operating Temperature Max (°C): 55
  • Operating Temperature Max (F): 131
  • Operating Temperature Min (°C): 0
  • Operating Temperature Min (F): 32
  • Product Weight (kg): 0.181
  • Product Weight (lbs): 0.4
  • Product Height (in): 1 5/8
  • Product Height (mm): 41
  • Product Width (in): 1 7/16
  • Product Width (mm): 37
  • Product Depth (in): 2 3/4
  • Product Depth (mm): 70
  • Warranty: 2-year limited

Documents & Downloads

Product Rating


Overview

GTiN 00078275125230
Warranty Length 2 yr
Width 1 7/16 in
Color White
Operating Temperature 131 degrees F
Type Electronic and Magnetic
Mounting Type In-Wall
Depth 2 3/4 in
Height 1 5/8 in
Weight 0.4 lb
Standard CULus Listed,California Title 24 Compliant,UL/cUL Listed
Input Voltage 120 V
Family Brand Name Intermatic
Max Operating Temperature 131 degrees F
Blade Dimensions 2.56 HEIGHT X 1.31 WIDTH X 2.19 DEPTH IN, 65 HEIGHT X 33.2 WIDTH X 55.6 DEPTH MM
Min Operating Temperature 32 degrees F
Sensing Range 150 DEG 980 SQ-FT
Load Type 500 VA @ 120 VAC (Fluorescent),500 WTT @ 120 VAC (Tungsten)
Operating Cycles 20000
Product UPC 07827512523
