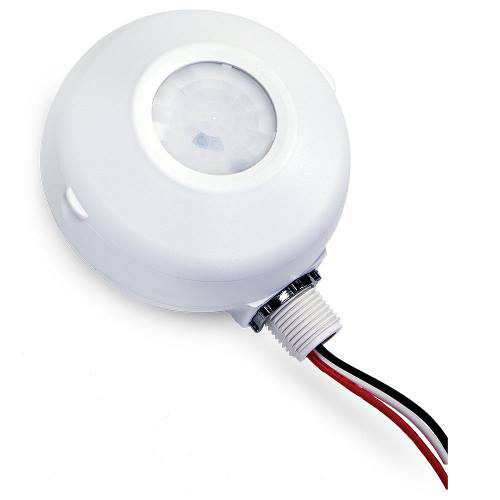

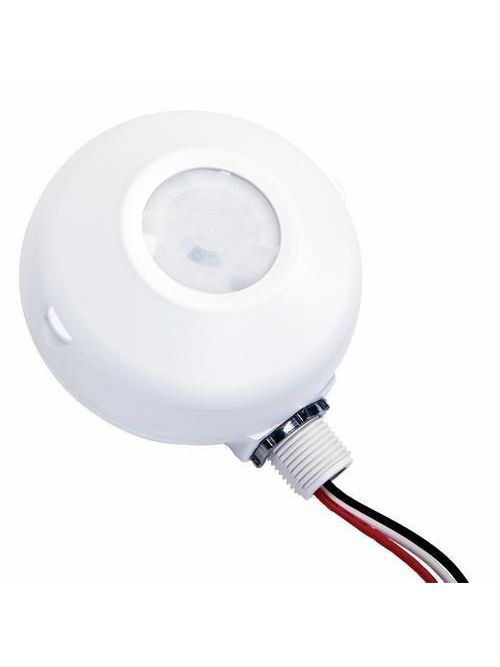

INT-MAT IOS-HB-U 15-80FT Ceiling Mn
$81.57/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # IOS-HB-U
North Coast Part # 1007417

Features & Applications

Features

  • Passive Infrared (PIR) sensing for presence detection
  • Two lenses included
  • Coverage: 1200 ft2 (Lens 1) or 2800 ft2 (Lens 2) when mounted at 15 to 50 ft
  • Zero-crossing technology for long life and performance
  • Adjustable ambient light sensor override

Applications

  • Warehouse
  • Manufacturing

Specifications

  • Occupancy Sensor Power Type: Line Voltage
  • Sensor Technology: PIR (Passive Infrared)
  • Mount Type: Ceiling, Fixture
  • Neutral Connection Required: No
  • Sensor Switch Type: Occupancy
  • Color: White
  • Number of Circuits: 0
  • Input Voltages Display: 120-277 VAC, 50/60 Hz
  • Resistive: 10 A, 120 VAC, 60 Hz
  • Electronic Ballast: 1600 VA, 277 VAC, 60 Hz 800 VA, 120 VAC, 60 Hz
  • Tungsten: 800 W, 120 VAC, 60 Hz
  • Incandescent Load Ratings: 800 W, 120 VAC, 60 Hz
  • Motor: 1/4 HP, 120 VAC, 60 Hz
  • Maximum Current Consumption (mA): 0
  • PIR Coverage Pattern (degrees): 360
  • PIR Lens 2 Coverage Pattern (degrees): 360
  • Adjustable Light Level Max: 150 fc
  • Adjustable Light Level Min: 10 fc
  • Operating Temperature Max (°C): 55
  • Operating Temperature Max (F): 131
  • Operating Temperature Min (°C): 0
  • Operating Temperature Min (F): 32
  • Product Weight (kg): 0.272
  • Product Weight (lbs): 0.6
  • Product Height (in): 2 3/4
  • Product Height (mm): 70
  • Product Diameter (in): 4
  • Product Diameter (mm): 102
  • Warranty: 2-year limited

Documents & Downloads

Product Rating


Categories

Overview

UPC 07827513992
GTiN 00078275139923
Warranty Length 2 yr
Color White
Operating Temperature 131 degrees F
Type Occupancy Sensor
Applications Commercial
Mounting Type Ceiling,Fixture
Height 2 3/4 in
Weight 0.6 lb
Standard CULus Listed,Title CA 20 Listed,UL/cUL Listed
Input Voltage 120-277 V
Family Brand Name Intermatic
Max Operating Temperature 131 degrees F
Blade Dimensions 4.53 DIAMETER X 2.51 HEIGHT (LENS A) IN, 115 DIAMETER X 63.75 HEIGHT (LENS A) MM, 4.53 DIAMETER X 2.77 HEIGHT (LENS B) IN, 115 DIAMETER X 70.35 HEIGHT (LENS B) MM
Min Operating Temperature 32 degrees F
Sensing Range 360 DEG 1200 SQ-FT (Lens 1), 360 DEG 2800 SQ-FT (Lens 2)
Load Type 1600 VA @ 277 VAC (Inductive Ballast),800 VA @ 120 VAC,800 WTT @ 120 VAC (Incandescent)
