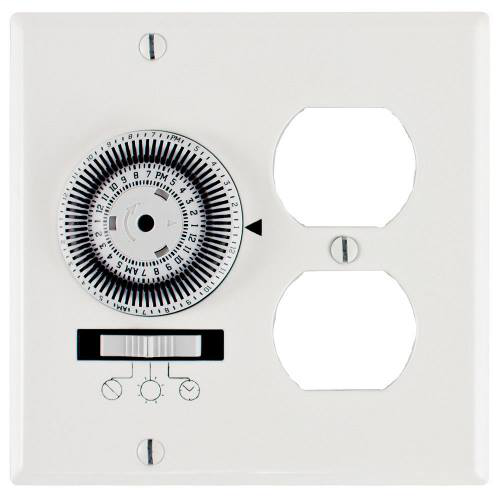

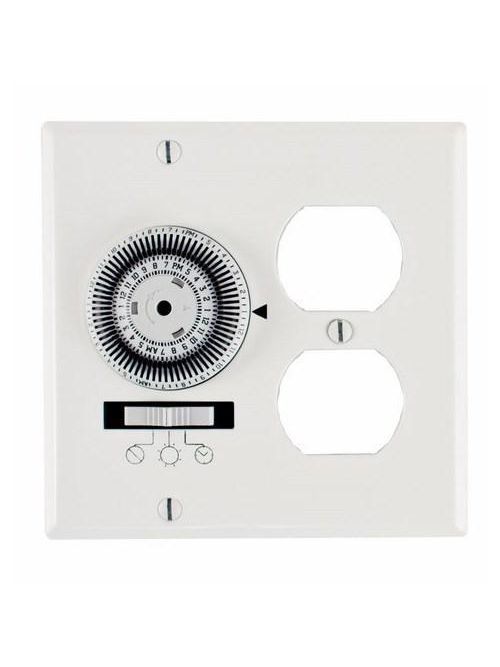

INT-MAT KM2ST-2R IN-WALL TIMER,2 GA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$91.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # KM2ST-2R
North Coast Part # 599900

Features & Applications

Features

  • 72 trippers provide 36 ON/OFF events per 24-hour period
  • Captive trippers with 20-minute switching intervals
  • 3-way (SPDT) switch available
  • 3 position ON/OFF/AUTO override provides continuous ON or OFF operation
  • Reliable synchronous timer motor
  • Multiple wall plates available
  • Easy wiring and installation
  • Heavy-Duty 20 A rating
  • Requires neutral connection

Applications

  • Entryway Lighting
  • Deck Light Controls
  • Landscape Light Controls
  • Attic Fans
  • Pumps
  • Hallway Lighting
  • Small Commercial Signage and Store Lighting

Specifications

  • Operation Mode: 24-hours
  • Wiring Configurations: Single
  • Wall Plate Configurations: 2-Gang
  • Input Voltages Display: 120 VAC, 60 Hz
  • Incandescent Load Ratings (Multi-Gang): 1350 W, 120 VAC, 60 Hz
  • Motor: 1 HP, 120 VAC, 60 Hz
  • Product Weight (kg): 0.217
  • Product Weight (lbs): 0.479
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Related Accessories and Parts

  • 24--00045: Wall Plate for KM2ST-2R, 2 Gang (Timer and Receptacle), White

Overview

GTiN 00614573043717
Warranty Length 1 yr
Operating Temperature 180 degrees F
Voltage 120 Volt
Type Electromechanical In-Wall
Applications Indoor/Outdoor, CFLs Lighting, HVACR, Fans, Pumps, Office Machines
Mounting Type Wall Mount
Weight 0.479 lb
Frequency 50/60 Hz
Connection Type Wire Lead
Wattage 1350 Watt
Input Voltage 120 V
Family Brand Name Intermatic
Enclosure Rating 0 - 95 RH Non-Condensing
TC Connection Wire Lead
Contact Configuration 1 NO
Amperage 20 Amp
Power Consumption 3 WTT
Contact Rating 20 AMP @ 120 VAC
Number of Poles 1 Pole
Action SPST
Sub Brand Grasslin
Product UPC 61457304371
