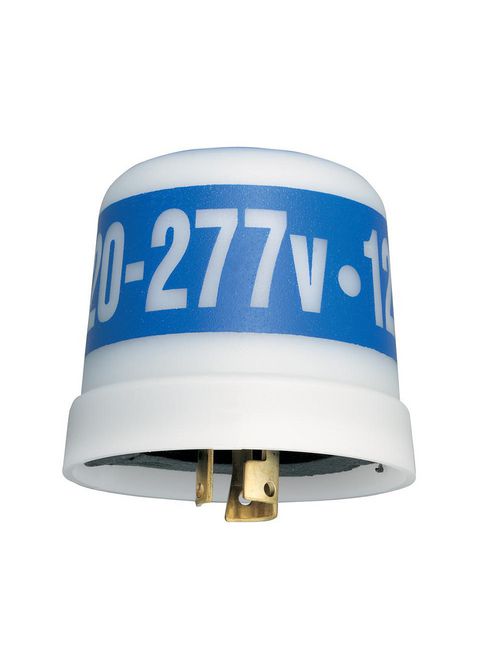

Intermatic LED4536SC 105 to 305 VAC 50/60 Hz 1000 W Locking Type Mount Electronic Photocontrol
Product image thumbnail 0
Product image thumbnail 1
$36.81/ea
In Stock | 18 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # LED4536SC
North Coast Part # 1008758

Features & Applications

Features

  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • All components meet 20-year life expectancy
  • Conformal coated PCB
  • Exceeds 15,000 ON/OFF switching cycles
  • Ideal for single or multifixture HID and LED installations (up to 2,220 W @ 277 VAC)
  • 510 J MOV surge protection

Applications

  • Exterior Lighting
  • Street Lighting
  • Parking Lot
  • Pedestrian Pathway
  • Landscape Lighting

Specifications

  • Photocontrol Style: Locking type
  • Photocontrol Sensor Location: Side
  • Input Voltages Display: 120-277 VAC, 50/60 Hz
  • Inductive: 1800 VA, 120-277 VAC, 50/60 Hz
  • Incandescent Load Ratings: 1000 W, 120-277 VAC, 50/60 Hz
  • Electronic Ballast: 8 A, 120-277 VAC, 50/60 Hz
  • Activation Off: 2.25 fc
  • Activation On: 1.5 fc
  • Sensor Time Delay: 2 sec to 5 sec
  • Surge Protection: 510 J MOV
  • Wire Lead Length (mm): 0
  • Operating Temperature Max (°C): 70
  • Operating Temperature Max (F): 158
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Cover Color: White with Blue Band
  • Housing Material: Polypropylene
  • Product Weight (kg): 0.113
  • Product Weight (lbs): 0.25
  • Product Height (in): 2 3/4
  • Product Height (mm): 69.9
  • Warranty: 12-year limited
  • Fail Mode: ON

Documents & Downloads

Product Rating


Related Accessories and Parts

  • K171H: ANSI C136.41 7 PIN Locking type Receptacle (9" Lead)
  • K4500: Shorting Plug, Rating: 15 A, 480 VAC Max
  • K121: ANSI C136.10 Locking Type NEMA Receptacle, (9" lead), gasket included
  • K121-30: ANSI C136.10 Locking Type NEMA Receptacle, (30" lead), gasket included
  • K122: ANSI C136.10 Sealed Locking Type NEMA Receptacle with Pole Bracket

Overview

UPC 07827514364
GTiN 00078275143647
Warranty Length 12 yr
Size 2.97 DIAMETER X 2.721 HEIGHT IN, 75.4 DIAMETER X 69.11 HEIGHT MM
Color Blue Band,White
Operating Temperature 158 degrees F
Type Specifier Grade
Applications Dusk to Dawn Lighting Control
Mounting Type Twistlock Mount
Height 2 3/4 in
Weight 0.25 lb
Standard ANSI C136.10,CAS Approval,CULus Listed,RoHS Compliant,Title CA 20 Listed,UL Recognized
Frequency 50/60 Hz
Connection Type Lock Type
Input Voltage 120-277 V
Family Brand Name Intermatic
TC Connection Lock Type
Wire Length 0 mm
Power Consumption <0.5 WTT @ 277 VAC
Dielectric Strength 2500 VAC
Max Operating Temperature 158 degrees F
Min Operating Temperature -40 degrees F
Enclosure NEMA 410
Operating Cycles 15000
