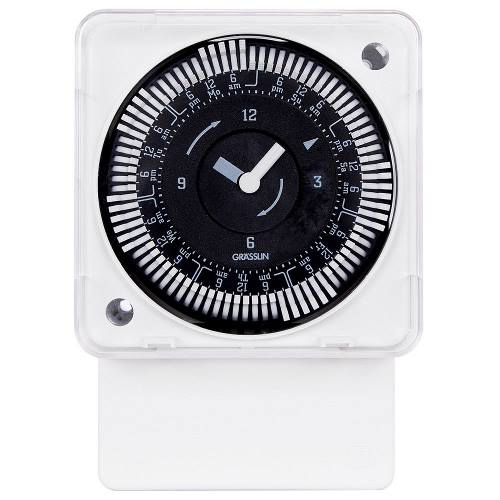

INT-MAT MIL72ASWUZ-24 7D SURFACE/DI
$158.34/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # MIL72ASWUZ-24
North Coast Part # 1276873

Features & Applications

Features

  • 21 A SPDT switch
  • Synchronous drive or quartz drive (Q Models) with self-recharging battery backup
  • 7-Day carry-over battery backup on Q models
  • Captive trippers with 2-hour intervals
  • Available with or without override
  • True clock face, easy-to-set
  • Surface/DIN rail or flush mount
  • Clear plastic dust cover
  • Compact size

Applications

  • Commercial Refrigeration
  • Pumps/Motor/Fan Control
  • Hydroponic Systems
  • Aerobic Wastewater Treatment Systems
  • Boilers
  • Generator Exercising

Specifications

  • Maximum ON/OFF Operations: 0
  • Input Voltages Display: 24 VAC, 60 Hz
  • Mounting Options: DIN, Surface
  • Has Override Switch: No
  • Resistive: 21 A, 120-250 VAC, 60 Hz
  • Tungsten: 1350 W, 120 VAC, 60 Hz
  • Motor: 120/250 VAC, 1/2 HP
  • Operating Temperature Max (°C): 85
  • Operating Temperature Max (F): 185
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Wire Size Max: #12 AWG
  • Product Height (in): 4
  • Product Height (mm): 102.5
  • Product Width (in): 2 53/64
  • Product Width (mm): 72
  • Product Depth (in): 2 1/16
  • Product Depth (mm): 52
  • Warranty: 1-year limited

Documents & Downloads

Product Rating



Overview

UPC 61457313302
GTiN 00614573133029
Warranty Length 1 yr
Width 2 53/64 in
Size 2.83 LENGTH X 2.06 WIDTH X 4.0 HEIGHT IN, 72 LENGTH X 52 WIDTH X 102.5 HEIGHT MM
Operating Temperature 185 degrees F
Type Electromechanical
Applications General Purpose, Agricultural Facilities, Commercial, Lighting Control, HVACR, Pumps, Motors, Fan Controls, Access Controls, OEM, Indoor/Outdoor, HVACR
Mounting Type Surface/DIN Rail Mount
Depth 52 mm
Height 4 in
Standard CE,CCSAus Certified,Title CA 20 Listed,CULus Listed,HVACR
Connection Type Screw Terminal
Wattage 1,350 Watt
Input Voltage 24 V
Family Brand Name Intermatic
Enclosure Rating 0 - 95 RH Non-Condensing
TC Connection Screw Terminal
Contact Configuration 1 NO/1 NC
Power Consumption 0.1 VA @ 24 VAC, 0.5 VA @120 VAC, 1.0 VA @ 240 VAC
Max Operating Temperature 185 degrees F
Min Operating Temperature -40 degrees F
Max Wire Size 12 AWG
Contact Rating 21 AMP @ 120 - 250 VAC
Number of Poles 1 Pole
Action SPDT
Sub Brand Grasslin
